Description
General part information
sc Series

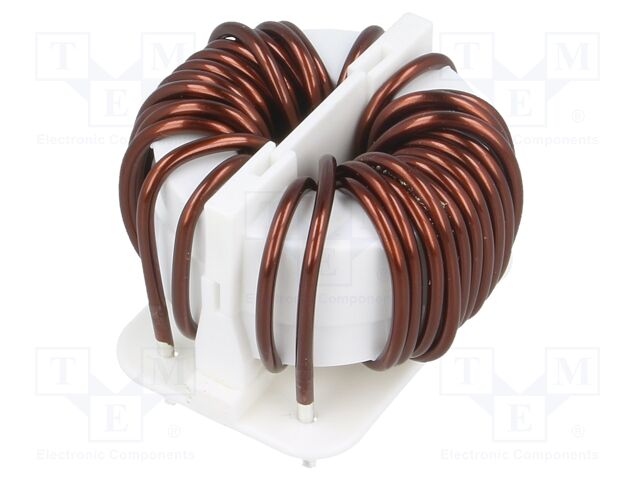

1 mH 2 Line Common Mode Choke Through Hole 15A DCR 12mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | SC-15-10JH |
|---|---|
| Current Rating (Max) | 15 A |
| DC Resistance (DCR) (Max) | 12 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.614 in |
| Inductance | 1 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Horizontal |
| Package Leads | 4 Leads |
| Package Name | Horizontal |
| Size / Dimension Diameter | 1.732 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 VDC |
