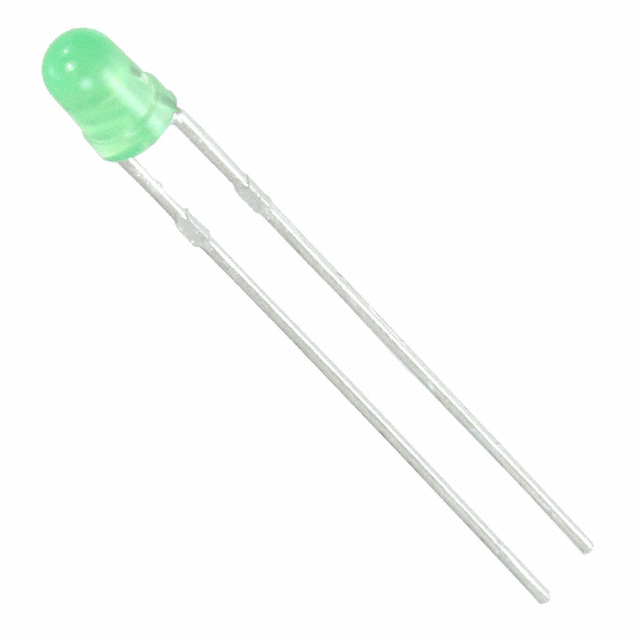

WP710A10GD14V
ActiveKingbright
LED GREEN DIFFUSED T-1 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP710A10GD14V |
|---|---|
| Color | Green |
| Configuration | Standard |
| Height (Max) [Max] [z] | 5.9 mm |
| Lens Color | Green |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 20 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [diameter] | 2.9 mm |
| Supplier Device Package | T-1 |
| Viewing Angle [custom] | 40 ° |
| Voltage - Forward (Vf) (Typ) | 10.5 V |
| Wavelength - Dominant | 568 nm |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WP710A10GD14V
Green 568nm LED Indication - Discrete 10.5V Radial
