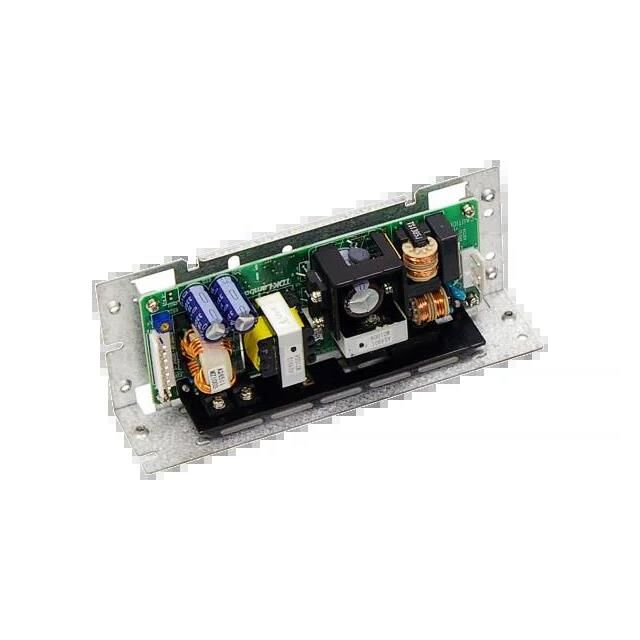

ZWS50BAF-5/L
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 5 V
Deep-Dive with AI
Search across all available documentation for this part.
ZWS50BAF-5/L
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 5 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZWS50BAF-5/L | ZWS50BAF Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | CE | CE |
| Current - Output 1 | 10 A | 1.1 - 10 A |
| Efficiency | 84 % | 84 - 87 % |
| Features | Load Sharing, Universal Input, PFC, Adjustable Output, DC Input Capable | Load Sharing, Universal Input, PFC, Adjustable Output, DC Input Capable |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -10 °C | -10 °C |
| Power (Watts) | 50 W | 50 W |
| Size / Dimension [x] | 132 mm | 132 mm |
| Size / Dimension [x] | 5.2 in | 5.2 in |
| Size / Dimension [y] | 50 mm | 50 mm |
| Size / Dimension [y] | 1.97 " | 1.97 " |
| Size / Dimension [z] | 1.02 in | 1.02 in |
| Size / Dimension [z] | 26 mm | 26 mm |
| Type | Open Frame | Open Frame, Conformal Coated, Enclosed |
| Voltage - Input [Max] | 265 VAC | 265 VAC |
| Voltage - Input [Min] | 85 VAC | 85 VAC |
| Voltage - Isolation | 3000 V | 3000 V |
| Voltage - Output 1 | 5 V | 5 - 48 V |
ZWS50BAF Series
AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 12 V
| Part | Power (Watts) | Features | Type | Mounting Type | Approval Agency | Voltage - Input [Min] | Voltage - Input [Max] | Number of Outputs | Current - Output 1 | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Efficiency | Applications | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDK-LAMBDA ZWS50BAF-12/L | 50 W | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Open Frame | Chassis Mount | CE | 85 VAC | 265 VAC | 1 | 4.3 A | 3000 V | -10 °C | 70 °C | 1.02 in | 50 mm | 132 mm | 1.97 " | 26 mm | 5.2 in | 85 % | ITE (Commercial) | 12 V |
TDK-LAMBDA ZWS50BAF-48/L | 50 W | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Open Frame | Chassis Mount | CE | 85 VAC | 265 VAC | 1 | 1.1 A | 3000 V | -10 °C | 70 °C | 1.02 in | 50 mm | 132 mm | 1.97 " | 26 mm | 5.2 in | 86 % | ITE (Commercial) | 48 V |
TDK-LAMBDA ZWS50BAF-12/CO2 | 50 W | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Conformal Coated, Open Frame | Chassis Mount | CE | 85 VAC | 265 VAC | 1 | 4.3 A | 3000 V | -10 °C | 70 °C | 1.02 in | 50 mm | 132 mm | 1.97 " | 26 mm | 5.2 in | 85 % | ITE (Commercial) | 12 V |
TDK-LAMBDA ZWS50BAF-5/A | 50 W | Adjustable Output, PFC, Universal Input | Enclosed | Chassis Mount | CE | 85 VAC | 265 VAC | 1 | 10 A | 3000 V | -10 °C | 70 °C | 1.02 in | 50 mm | 132 mm | 1.97 " | 26 mm | 5.2 in | 84 % | ITE (Commercial) | 5 V |
TDK-LAMBDA ZWS50BAF-24/L | 50 W | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Open Frame | Chassis Mount | CE | 85 VAC | 265 VAC | 1 | 2.1 A | 3000 V | -10 °C | 70 °C | 1.02 in | 50 mm | 132 mm | 1.97 " | 26 mm | 5.2 in | 87 % | ITE (Commercial) | 24 V |
TDK-LAMBDA ZWS50BAF-5/CO2 | 50 W | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Conformal Coated, Open Frame | Chassis Mount | CE | 85 VAC | 265 VAC | 1 | 10 A | 3000 V | -10 °C | 70 °C | 1.02 in | 50 mm | 132 mm | 1.97 " | 26 mm | 5.2 in | 84 % | ITE (Commercial) | 5 V |
TDK-LAMBDA ZWS50BAF-12/A | 50 W | Adjustable Output, PFC, Universal Input | Enclosed | Chassis Mount | CE | 85 VAC | 265 VAC | 1 | 4.3 A | 3000 V | -10 °C | 70 °C | 1.02 in | 50 mm | 132 mm | 1.97 " | 26 mm | 5.2 in | 85 % | ITE (Commercial) | 12 V |
TDK-LAMBDA ZWS50BAF-15/A | 50 W | Adjustable Output, PFC, Universal Input | Enclosed | Chassis Mount | CE | 85 VAC | 265 VAC | 1 | 3.5 A | 3000 V | -10 °C | 70 °C | 1.02 in | 50 mm | 132 mm | 1.97 " | 26 mm | 5.2 in | 86 % | ITE (Commercial) | 15 V |
TDK-LAMBDA ZWS50BAF-5/L | 50 W | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Open Frame | Chassis Mount | CE | 85 VAC | 265 VAC | 1 | 10 A | 3000 V | -10 °C | 70 °C | 1.02 in | 50 mm | 132 mm | 1.97 " | 26 mm | 5.2 in | 84 % | ITE (Commercial) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ZWS50BAF Series
Open Frame AC DC Converters 1 Output 5V 85 ~ 265 VAC Input
