E3FRAQG
ActiveSwitchcraft Inc.

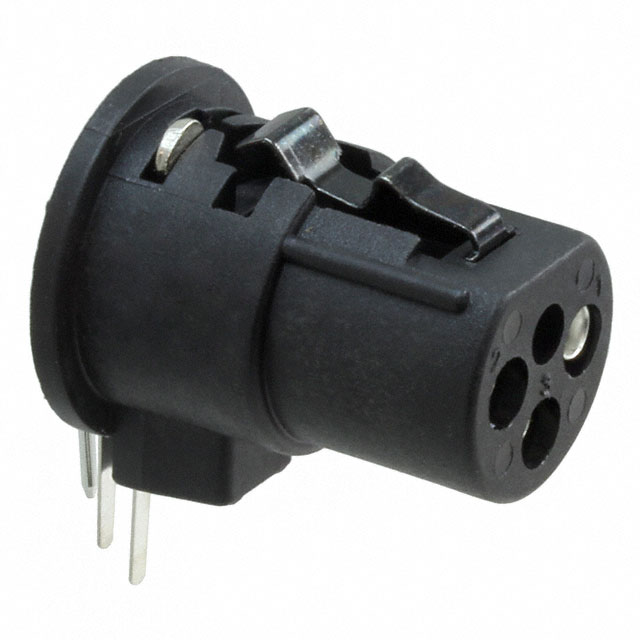

CONN FMALE INSERT XLR 3P SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
E3FRAQG
ActiveSwitchcraft Inc.
CONN FMALE INSERT XLR 3P SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | E3FRAQG | E3FRA Series |
|---|---|---|
| Applications | Audio, Instrumentation | Audio, Instrumentation |
| Color | - | Silver, Black |
| Connector Type | Female Sockets, Insert | Female Sockets, Insert, Plug |
| Contact Finish - Mating | Silver | Gold, Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 15 A | 15 A |
| Fastening Type | - | Latch Lock |
| Features | Insert Only, Requires Shell | Insert Only, Requires Shell, Board Guide, Ground |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Feature | - | Flange |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle, Through Hole, Right Angle, Panel Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | - | Metal |
| Shell Finish | - | Nickel, Chrome |
| Shell Material | - | Zinc Die Cast |
| Shell Size - Insert | XLR | XLR |
| Shielding | - | Shielded |
| Termination | Solder | Solder |
E3FRA Series
CONN FMALE INSERT XLR 3P SOLDER
| Part | Contact Material | Shell Size - Insert | Features | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Connector Type | Termination | Mounting Type | Contact Finish - Mating | Orientation | Applications | Insert Material | Color | Primary Material | Fastening Type | Shell Finish | Mounting Feature | Shell Material | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. E3FRAAUQG | Copper Alloy | XLR | Insert Only, Requires Shell | 85 °C | -55 °C | 15 A | Female Sockets, Insert | Solder | Through Hole, Right Angle | Gold | Keyed | Audio, Instrumentation | Thermoplastic | |||||||
Switchcraft Inc. E3FRAQG | Copper Alloy | XLR | Insert Only, Requires Shell | 85 °C | -55 °C | 15 A | Female Sockets, Insert | Solder | Through Hole, Right Angle | Silver | Keyed | Audio, Instrumentation | Thermoplastic | |||||||
Switchcraft Inc. E3FRAAU | Copper Alloy | XLR | Board Guide, Ground | 85 °C | -55 °C | 15 A | Female Sockets, Plug | Solder | Panel Mount, Right Angle, Through Hole | Gold | Keyed | Audio, Instrumentation | Thermoplastic | Silver | Metal | Latch Lock | Nickel | Flange | Zinc Die Cast | Shielded |
Switchcraft Inc. E3FRAB | Copper Alloy | XLR | Board Guide, Ground | 85 °C | -55 °C | 15 A | Female Sockets, Plug | Solder | Panel Mount, Right Angle, Through Hole | Silver | Keyed | Audio, Instrumentation | Thermoplastic | Black | Metal | Latch Lock | Chrome | Flange | Zinc Die Cast | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.22 | |
| 10 | $ 2.92 | |||
| 25 | $ 2.77 | |||
| 50 | $ 2.70 | |||
| 100 | $ 2.57 | |||
| 250 | $ 2.27 | |||
Description
General part information
E3FRA Series
3 Position Circular Connector Insert, Female Sockets Solder
