HSTBD3/8-4
ActiveAmphenol TPC Wire & Cable
HEATSHRNK 3:1 3/8" 4' STICK 100'
HSTBD3/8-4
ActiveAmphenol TPC Wire & Cable
HEATSHRNK 3:1 3/8" 4' STICK 100'
Description
General part information
HSTBD3/8-4

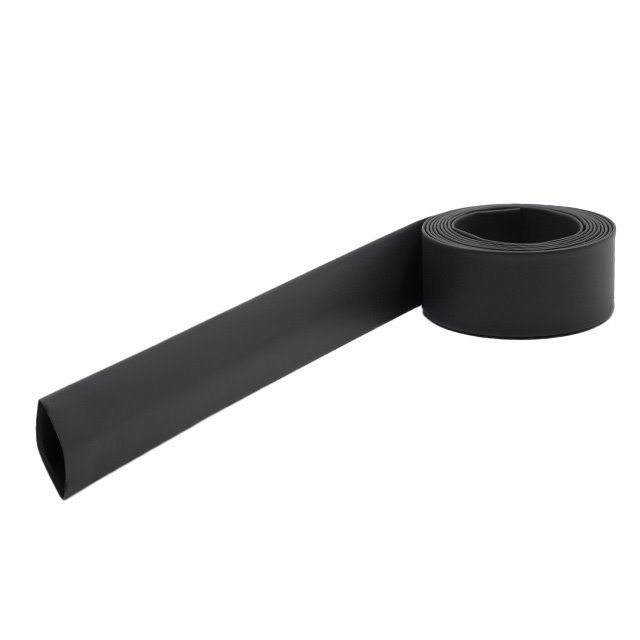

Heat Shrink Tubing, Flexible 0.374" (9.50mm) 3 to 1 Black
Technical Specifications
Parameters and characteristics for this part
| Specification | HSTBD3/8-4 |
|---|---|
| Color | Black |
| Features | Chemical Resistant, Fluid Resistant |
| Inner Diameter - Recovered | 0.126 in |
| Inner Diameter - Supplied | 0.374 in |
| Material | Polyolefin (PO) |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Recovered Wall Thickness | 0.057 in |
| Shelf Life | 24 Months |
| Shrink Temperature | 70 °C |
| Shrinkage Ratio | 3 |
| Storage/Refrigeration Temperature | Room Temperature |
| Type | Flexible, Tubing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
