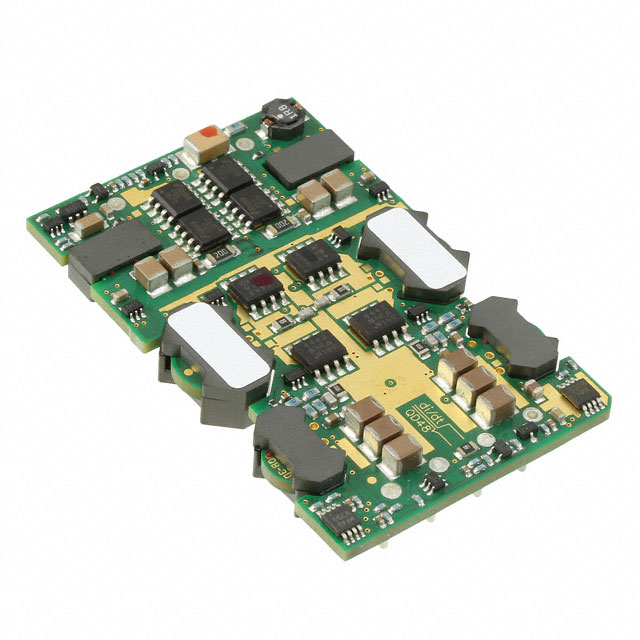

QD48T033050-NBA0G

Active

Bel Power Solutions

DC DC CONVERTER 3.3V 5V 100W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 3.3V 5V 100W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QD48T033050-NBA0G	QD48T033050 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active Low, Enable, Active High
Current - Output (Max)	15 A, 10 A	10 - 15 A
Efficiency	88 %	88 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP	OTP, Remote On/Off, OVP, UVLO, OCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-DIP Module, 1/4 Brick	7-DIP Module, 1/4 Brick
Power (Watts)	100 W	100 W
Size / Dimension [x]	58.4 mm	58.4 mm
Size / Dimension [x]	2.3 in	2.3 in
Size / Dimension [y]	36.8 mm	36.8 mm
Size / Dimension [y]	1.45 in	1.45 in
Size / Dimension [z]	0.34 in	0.3 - 0.34 "
Size / Dimension [z]	8.5 mm	7.7 - 8.5 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	2000 V	2000 V
Voltage - Output 1	3.3 V	3.3 V
Voltage - Output 2	5 V	5 V

DC DC CONVERTER 3.3V 5V 100W

Part	Power (Watts)	Applications	Voltage - Isolation	Control Features	Package / Case	Voltage - Output 1	Number of Outputs	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Features	Voltage - Output 2	Type	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
Bel Power Solutions QD48T033050-NAC0G	100 W	ITE (Commercial)	2000 V	Active Low, Enable	7-DIP Module, 1/4 Brick	3.3 V	2	88 %	85 °C	-40 °C	75 V	36 V	Through Hole	OCP, OTP, OVP, Remote On/Off, UVLO	5 V	Isolated Module	10 A, 15 A	7.7 mm	36.8 mm	2.3 in	58.4 mm	1.45 in	0.3 "
Bel Power Solutions QD48T033050-NBA0G	100 W	ITE (Commercial)	2000 V	Active Low, Enable	7-DIP Module, 1/4 Brick	3.3 V	2	88 %	85 °C	-40 °C	75 V	36 V	Through Hole	OCP, OTP, OVP, Remote On/Off, UVLO	5 V	Isolated Module	10 A, 15 A	8.5 mm	36.8 mm	2.3 in	58.4 mm	1.45 in	0.34 in
Bel Power Solutions QD48T033050-PBC0	100 W	ITE (Commercial)	2000 V	Active High, Enable	7-DIP Module, 1/4 Brick	3.3 V	2	88 %	85 °C	-40 °C	75 V	36 V	Through Hole	OCP, OTP, OVP, Remote On/Off, UVLO	5 V	Isolated Module	10 A, 15 A	8.5 mm	36.8 mm	2.3 in	58.4 mm	1.45 in	0.34 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 3.3V 5V 15A, 10A 36V - 75V Input
