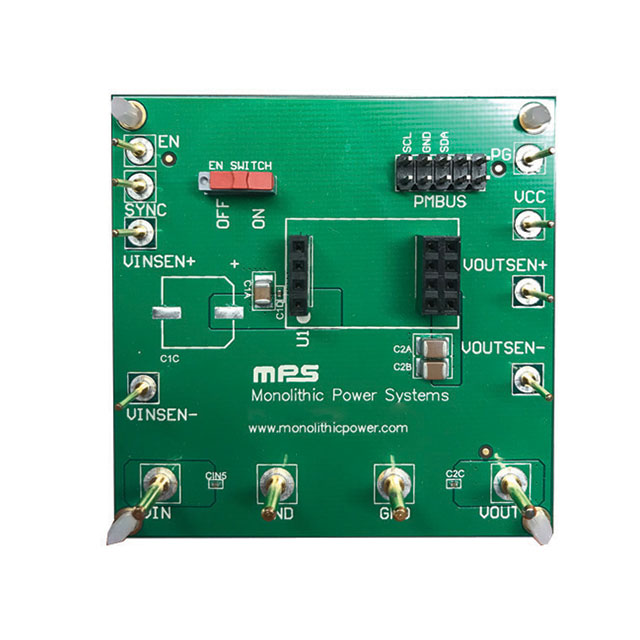

http://media.digikey.com/Photos/Monolithic%20Power%20Systems%20Inc/MFG_MEZDPD1620Axxxx_viewc.jpg

PKT-MEZDPD1620A-852E

Active
Monolithic Power Systems Inc.

CONFIGURABLE 1620A BUCK EVAL BRD

Find alt
http://media.digikey.com/Photos/Monolithic%20Power%20Systems%20Inc/MFG_MEZDPD1620Axxxx_viewc.jpg

PKT-MEZDPD1620A-852E

Active
Monolithic Power Systems Inc.

CONFIGURABLE 1620A BUCK EVAL BRD

Find alt

Description

General part information

PKT-MEZDPD1620A-852E

mEZDPD1620A-852E MEZDPD1620 DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical Specifications

Parameters and characteristics for this part

SpecificationPKT-MEZDPD1620A-852E
Board TypeFully Populated
ContentsAccessories, Board, Cable
Current - Output20 A
Main PurposeDC/DC, Step Down
Non-Isolated Output Count1 count
Output TypeNon-Isolated
Regulator TopologyBuck
Supplied ContentsCable(s), Accessories, Board(s)
Total Output Count1
Utilized IC / PartmEZDPD1620A-852E
Voltage - Input (Maximum)16 V
Voltage - Input (Minimum)4 V
Voltage - Output (Max)5.5 V
Voltage - Output (Min)0.6 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
