T4011019031-000
ActiveTE Connectivity AMP Connectors

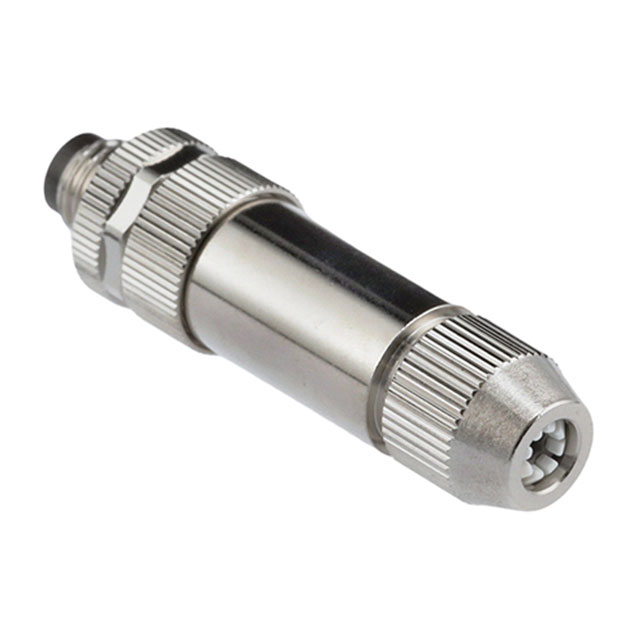

CONN PLUG MALE 3POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4011019031-000
ActiveTE Connectivity AMP Connectors
CONN PLUG MALE 3POS GOLD SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4011019031-000 | T40110 Series |
|---|---|---|
| Applications | Telecommunications, Automation Control, Industrial | Telecommunications, Automation Control, Industrial |
| Color | Silver | Silver |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 µm |
| Current Rating (Amps) | 3 A | 3 A |
| Features | Backshell | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Brass | Brass |
| Shell Size - Insert | M8-3 | M8-4, M8-3 |
| Shielding | Shielded | Shielded |
| Termination | Screw | Screw |
| Voltage Rating | 60 VDC | 30 - 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.05 | |
| 10 | $ 16.69 | |||
| 25 | $ 16.25 | |||
| 50 | $ 15.45 | |||
| 100 | $ 13.94 | |||
| 250 | $ 13.85 | |||
| 500 | $ 12.07 | |||
T40110 Series
CONN PLUG MALE 4POS GOLD SCREW
| Part | Color | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Features | Ingress Protection | Current Rating (Amps) | Shell Material | Number of Positions | Shell Size - Insert | Termination | Shielding | Connector Type | Voltage Rating | Primary Material | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4011019041-000 | Silver | Gold | 85 °C | -40 °C | Automation Control, Industrial, Telecommunications | 3 µin | 0.076 µm | Free Hanging (In-Line) | Backshell | IP67 - Dust Tight, Waterproof | 3 A | Brass | 4 | M8-4 | Screw | Shielded | Male Pins, Plug | 30 VDC | Metal | Nickel |
TE Connectivity AMP Connectors T4011019031-000 | Silver | Gold | 85 °C | -40 °C | Automation Control, Industrial, Telecommunications | 3 µin | 0.076 µm | Free Hanging (In-Line) | Backshell | IP67 - Dust Tight, Waterproof | 3 A | Brass | M8-3 | Screw | Shielded | Male Pins, Plug | 60 VDC | Metal | Nickel | |
TE Connectivity AMP Connectors T4011008031-000 | Silver | Gold | 85 °C | -40 °C | Automation Control, Industrial, Telecommunications | 3 µin | 0.076 µm | Free Hanging (In-Line) | Backshell | IP67 - Dust Tight, Waterproof | 3 A | Brass | M8-3 | Screw | Male Pins, Plug | 60 VDC | Metal | Nickel | ||
TE Connectivity AMP Connectors T4011008041-000 | Gold | 85 °C | -40 °C | Automation Control, Industrial, Telecommunications | Free Hanging (In-Line) | Backshell | IP67 - Dust Tight, Waterproof | 3 A | Brass | 4 | M8-4 | Screw | Male Pins, Plug | 30 VDC | Metal |
Description
General part information
T40110 Series
3 Position Circular Connector Plug, Male Pins Screw
