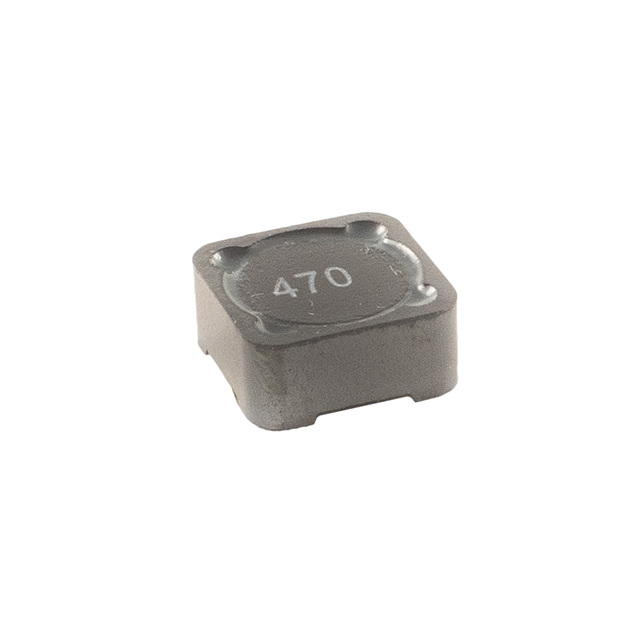

PCSDR125-471M-RC
ActiveAllied Components International
470UH +/-20% POWER CHIP SHIELDED
PCSDR125-471M-RC
ActiveAllied Components International
470UH +/-20% POWER CHIP SHIELDED
Description
General part information
PCSDR125-471M-RC
470 µH Shielded Inductor 871 mA 982mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PCSDR125-471M-RC |
|---|---|
| Current - Saturation (Isat) | 1.01 A |
| Current Rating | 871 mA |
| DC Resistance (DCR) (Max) | 982 mOhm |
| Height - Seated (Max) | 0.236 in |
| Inductance | 0.47 mH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.484 in |
| Size / Dimension Width | 0.484 in |
| Tolerance | 20 % |
