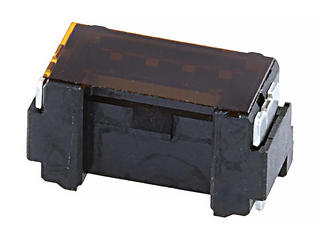

1.25MM PITCH, MICRO-LOCK PLUS PCB HEADER, SINGLE ROW, VERTICAL, SURFACE MOUNT, 0.10ΜM GOLD PLATING, POSITIVE LOCK, 4 CIRCUITS, WITH PICK-AND-PLACE TAPE, BLACK

Find alt

Alpha

5055680481

Active

Molex

1.25MM PITCH, MICRO-LOCK PLUS PCB HEADER, SINGLE ROW, VERTICAL, SURFACE MOUNT, 0.10ΜM GOLD PLATING, POSITIVE LOCK, 4 CIRCUITS, WITH PICK-AND-PLACE TAPE, BLACK

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

505568 Series

Connector Header Surface Mount 4 position 0.049" (1.25mm)

Technical Specifications

Parameters and characteristics for this part

Specification	5055680481

Applications	Industrial, General Purpose, Automotive
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	3.9 µin
Contact Finish Thickness - Post	3.9 µin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Push-Pull
Features	Solder Retention, Pick and Place
Insulation Color	Black
Insulation Height	0.165 in
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Mated Stacking Height	7.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	50 V
Voltage Rating (Type)	DC
