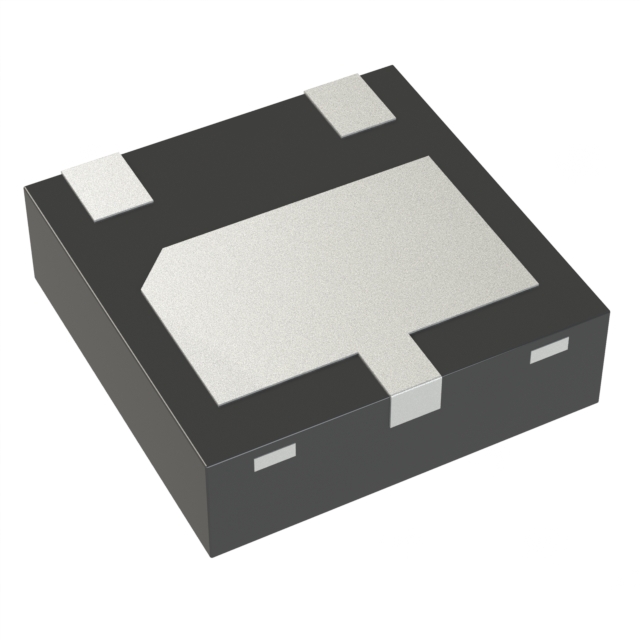

D24V0S1UG3LP20-7

Active

Diodes Inc

SURGE PROTECTION PP U-DFN2020-3(

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

D24V0S1UG3LP20-7

Active

Diodes Inc

SURGE PROTECTION PP U-DFN2020-3(

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D24V0S1UG3LP20-7

Applications	General Purpose
Capacitance @ Frequency	630 pF
Current - Peak Pulse (10/1000µs)	200 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	3-UDFN Exposed Pad
Power - Peak Pulse	5.68 kW
Power - Peak Pulse	5680 W
Power Line Protection	False
Supplier Device Package	U-DFN2020-3 (Type C)
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	25 V
Voltage - Reverse Standoff (Typ)	24 V

D24V0S1UG3LP20 Series

SINGLE CHANNEL BIDIRECTIONAL TVS DIODE

Part	Type	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Power - Peak Pulse	Qualification	Bidirectional Channels [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Breakdown (Min) [Min]	Voltage - Reverse Standoff (Typ)	Mounting Type	Capacitance @ Frequency	Grade	Package / Case	Applications	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Unidirectional Channels [custom]
Diodes Inc D24V0L1B2LPS-7B	Zener	X1-DFN1006-2	46 V	90 W	AEC-Q101	1	150 °C	-65 °C	26 V	24 V	Surface Mount	6 pF	Automotive	0402 (1006 Metric)
Diodes Inc D24V0S1U3LP20-7	Zener	U-DFN2020-3 (Type C)	40 V	4000 W			150 °C	-65 °C	26.7 V	24 V	Surface Mount			3-UDFN Exposed Pad	General Purpose	4 kW	8 A	1
Diodes Inc D24V0S1B2TQ-7	Zener	SOD-523	40 V	6 W	AEC-Q101	1	150 °C	-55 °C	27 V	24 V	Surface Mount	18 pF	Automotive	SC-79 SOD-523	HDMI USB		6 A
Diodes Inc D24V0L1B2LPSQ-7B	Zener	X1-DFN1006-2	46 V	90 W	AEC-Q101	1	150 °C	-65 °C	26 V	24 V	Surface Mount	6 pF	Automotive	0402 (1006 Metric)
Diodes Inc D24V0S1UG3LP20-7	Zener	U-DFN2020-3 (Type C)		5680 W			150 °C	-55 °C	25 V	24 V	Surface Mount	630 pF		3-UDFN Exposed Pad	General Purpose	5.68 kW	200 A	1
Diodes Inc D24V0H1U2LP-7B	Zener	X1-DFN1006-2	42 V	378 W			150 °C	-65 °C	25 V	24 V	Surface Mount	47 pF		0402 (1006 Metric)	General Purpose		9 A	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.10
		6000	$ 0.09
		9000	$ 0.09
		30000	$ 0.08
		75000	$ 0.08

Description

General part information

D24V0S1UG3LP20 Series

These new generation TVS Dx(x)VxS1U3LP20 are a series of unidirectional high surge transient voltage suppressors designed to protect power rails such as batteries and VBUS from ESD or surge events. The VRWM range is from 7.5V to 48V. This component contains a unidirectional TVS diode in a single package.
