391-084-520-202

Active

EDAC Inc.

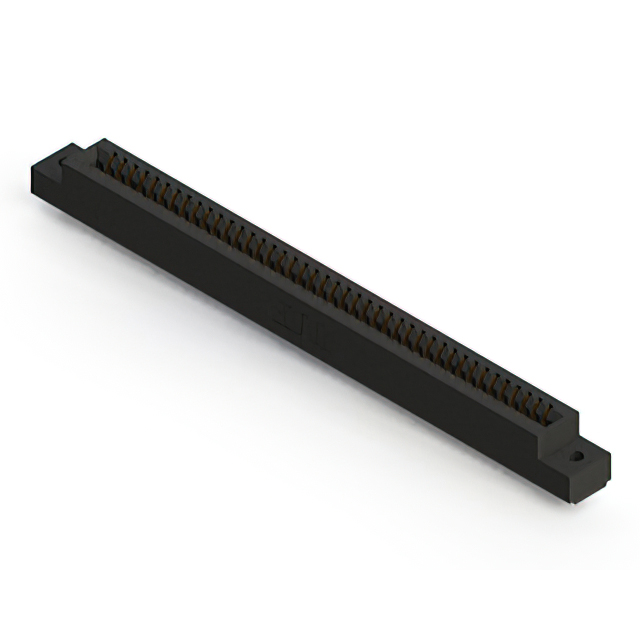

2.54MM STRAIGHT 84P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

391-084-520-202

Active

EDAC Inc.

2.54MM STRAIGHT 84P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	391-084-520-202

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	84
Number of Positions/Bay/Row [custom]	42
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

391-084 Series

Part	Material - Insulation	Color	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Termination	Mounting Type	Gender	Number of Rows	Termination Rows	Contact Material	Card Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Number of Positions/Bay/Row [custom]	Contact Type	Features
EDAC Inc. 391-084-520-202	Polyester Thermoplastic	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	Dual	Solder	Through Hole	Female	2	2	Copper Alloy	Non Specified - Dual Edge	84	10 Áin	0.25 Ám	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	42	Semi Bellows
EDAC Inc. 391-084-521-204	Polyester Thermoplastic	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	Dual	Solder	Through Hole	Female	2	2	Copper Alloy	Non Specified - Dual Edge	84	10 Áin	0.25 Ám	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	42	Semi Bellows
EDAC Inc. 391-084-520-204	Polyester Thermoplastic	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	Dual	Solder	Through Hole	Female	2	2	Copper Alloy	Non Specified - Dual Edge	84	10 Áin	0.25 Ám	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	42	Semi Bellows
EDAC Inc. 391-084-521-207	Polyester Thermoplastic	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	Dual	Solder	Through Hole	Female	2	2	Copper Alloy	Non Specified - Dual Edge	84	10 Áin	0.25 Ám			Flush Mount M3 Threaded Insert Top Opening	42	Semi Bellows
EDAC Inc. 391-084-524-204	Polyester Thermoplastic	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	Dual	Solder	Through Hole	Female	2	2	Copper Alloy	Non Specified - Dual Edge	84	10 Áin	0.25 Ám	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	42	Semi Bellows
EDAC Inc. 391-084-522-207	Polyester Thermoplastic	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	Dual	Solder	Through Hole	Female	2	2	Copper Alloy	Non Specified - Dual Edge	84	10 Áin	0.25 Ám			Flush Mount M3 Threaded Insert Top Opening	42	Semi Bellows
EDAC Inc. 391-084-524-202	Polyester Thermoplastic	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	Dual	Solder	Through Hole	Female	2	2	Copper Alloy	Non Specified - Dual Edge	84	10 Áin	0.25 Ám	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	42	Semi Bellows
EDAC Inc. 391-084-524-208	Polyester Thermoplastic	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	Dual	Solder	Through Hole	Female	2	2	Copper Alloy	Non Specified - Dual Edge	84	10 Áin	0.25 Ám			4-40 Flush Mount Threaded Insert Top Opening	42	Semi Bellows
EDAC Inc. 391-084-560-208	Polyester Thermoplastic	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	Dual	Solder	Through Hole	Female	2	2	Copper Alloy	Non Specified - Dual Edge	84	10 Áin	0.25 Ám			4-40 Flush Mount Threaded Insert Top Opening	42	Semi Bellows	Card Extender
EDAC Inc. 391-084-556-204	Polyester Thermoplastic	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	Dual	Solder	Through Hole	Female	2	2	Copper Alloy	Non Specified - Dual Edge	84	10 Áin	0.25 Ám	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	42	Semi Bellows	Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 17.37
LCSC	Piece	1	$ 18.84
		200	$ 7.29
		500	$ 7.03
		1000	$ 6.91
Newark	Each	1	$ 17.86
		100	$ 10.97
		250	$ 9.21
		500	$ 7.28
		1000	$ 6.25

Description

General part information

391-084 Series

84 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
