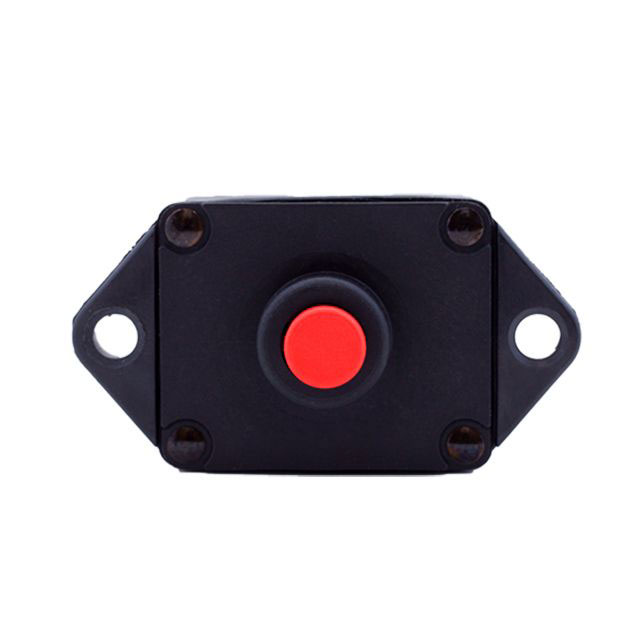

19M-P10-B-050-02

Active

Mechanical Products

CIR BRKR THRM 50A IP69K

Search across all available documentation for this part.

Active

Mechanical Products

CIR BRKR THRM 50A IP69K

Technical Specifications

Parameters and characteristics commom to parts in this series

CIR BRKR THRM 120A IP69K LIGHTED

Part	Illumination	Mounting Type	Breaker Type	Number of Poles	Approval Agency	Voltage Rating - DC	Actuator Type	Current Rating (Amps)
Mechanical Products 19M-P10-R-120-02	Red	Chassis Mount	Thermal	1	ABYC, SAE J1625, UL1077	30 V	Push to Reset	120 A
Mechanical Products 19M-P10-R-070-02	Red	Chassis Mount	Thermal	1	ABYC, SAE J1625, UL1077	30 V	Push to Reset	70 A
Mechanical Products 19M-P10-B-050-02	None	Chassis Mount	Thermal	1	ABYC, SAE J1625, UL1077	30 V	Push to Reset	50 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circuit Breaker Thermal 50A AC 30 V DC Push to Reset Chassis Mount

Technical documentation and resources

No documents available
