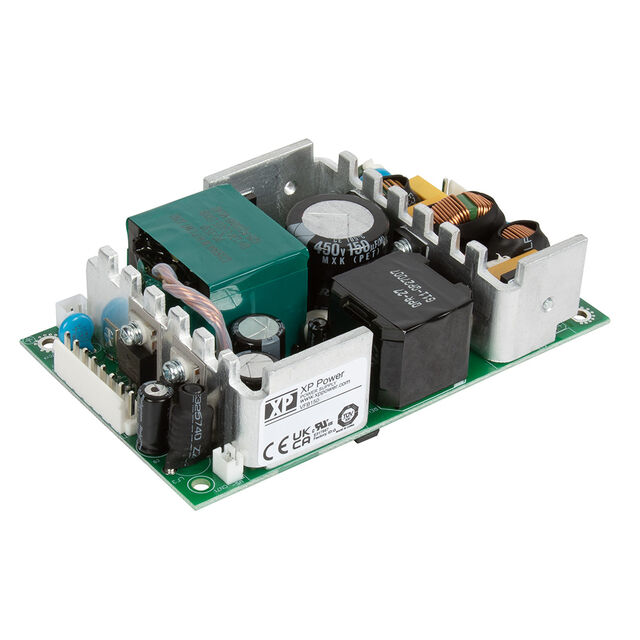

VFB150PS12
ActiveXP POWER
AC-DC PSU 12VDC 12.5A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VFB150PS12
ActiveXP POWER
AC-DC PSU 12VDC 12.5A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VFB150PS12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, UL, CE, UKCA, TUV |
| Current - Output 1 | 12.5 A |
| Efficiency | 88 % |
| Features | Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 150 W |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [x] | 5 in |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 1.43 in |
| Size / Dimension [z] | 36.3 mm |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 39.00 | |
| 5 | $ 37.83 | |||
| 10 | $ 36.66 | |||
| 25 | $ 35.10 | |||
| 100 | $ 32.76 | |||
Description
General part information
VFB150PS12
Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
Documents
Technical documentation and resources
