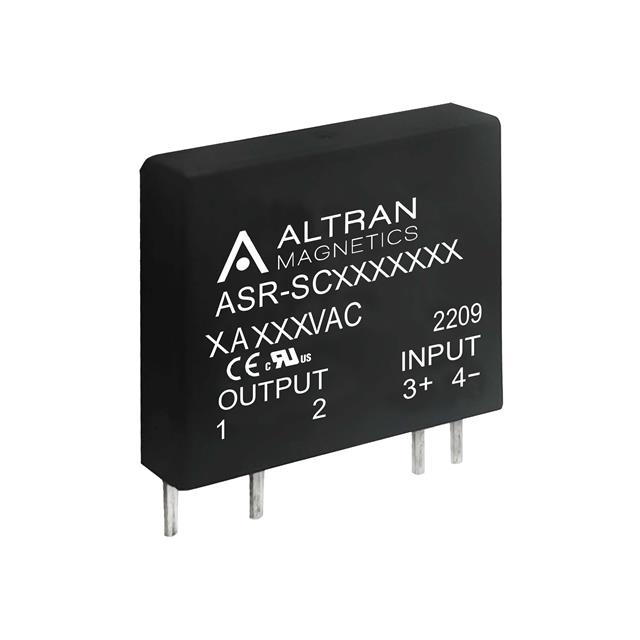

ASR-SC240D2ZP-F
ActiveAltran Magnetics, LLC
RELAY SSR 25MA 14.4V DC-IN 2A 280V AC-OUT 4-PIN BULK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASR-SC240D2ZP-F |
|---|---|
| Approval Agency | CE, cURus |
| Load Current | 2 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC, Zero Cross |
| Package / Case | 4-SIP |
| Supplier Device Package | 4-SIP |
| Termination Style | PC Pin |
| Voltage - Input | 12 VDC |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 6.39 | |
| 10 | $ 5.58 | |||
| 25 | $ 5.29 | |||
| 50 | $ 5.08 | |||
| 100 | $ 4.87 | |||
| 250 | $ 4.62 | |||
| 500 | $ 4.43 | |||
| 1000 | $ 4.26 | |||
Description
General part information
ASR-SC240D2ZP-F
Solid State SPST-NO (1 Form A) 4-SIP
