Description
General part information

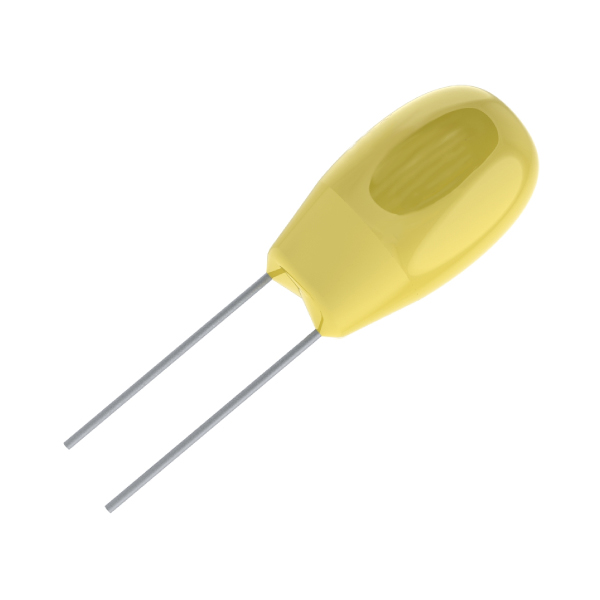

T352A475M006AT7301
4.7 µF Conformal Coated Tantalum Capacitors 6 V Radial, Disc 10Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T352A475M006AT7301 |
|---|---|
| Capacitance | 4.7 µF |
| ESR (Equivalent Series Resistance) | 10 Ohm |
| Features | General Purpose |
| Height - Seated (Max) | 0.402 in |
| Lead Spacing | 0.2 in |
| Manufacturer Size Code | T352A |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.177 in |
| Tolerance | 20 % |
| Type | Conformal Coated |
| Voltage - Rated | 6 VDC |
