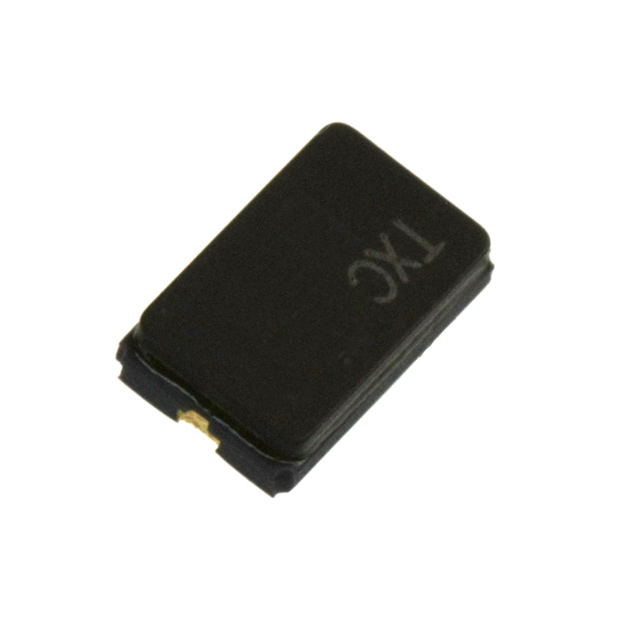

7A-8.000MAHK-T
ObsoleteTXC CORPORATION
CRYSTAL 8.0000MHZ 20PF SMD
7A-8.000MAHK-T
ObsoleteTXC CORPORATION
CRYSTAL 8.0000MHZ 20PF SMD
Description
General part information
7A-8.000MAHK-T
8 MHz ±30ppm Crystal 20pF 80 Ohms 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | 7A-8.000MAHK-T |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 8 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.053 in |
| Load Capacitance | 20 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | No Lead, 2-SMD |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | MHz Crystal |
