07011150
ActivePerle Systems

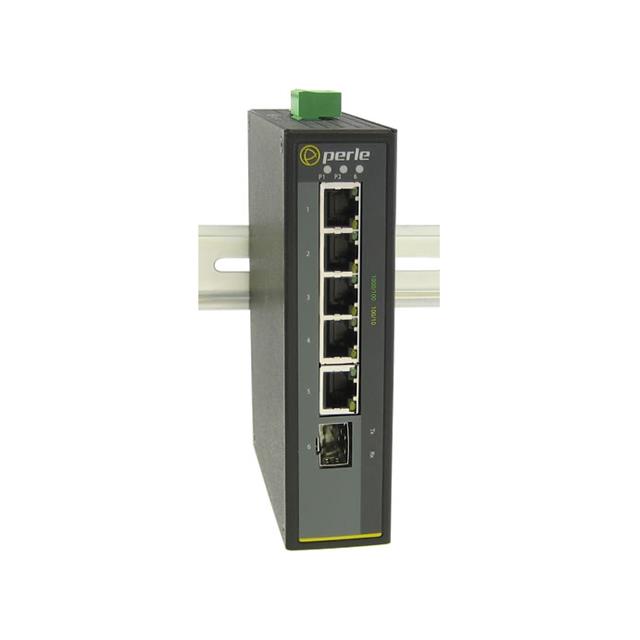

IDS-105G-SFP-XT - 5 PORT INDUSTR
07011150
ActivePerle Systems
IDS-105G-SFP-XT - 5 PORT INDUSTR
Description
General part information
07011150
Network Switch - Unmanaged 6 Ports IP30
Technical Specifications
Parameters and characteristics for this part
| Specification | 07011150 |
|---|---|
| Configuration | Fixed, SFP |
| Connector Type | RJ45, SFP |
| Copper Ports | 5 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Fiber Ports | 1 |
| Fiber Type | SFP |
| Ingress Protection | IP30 |
| Mounting Type | DIN Rail |
| Number of Ports | 6 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -40 °C |
| SFP/XFP Ports (Count) | 1 |
| SFP/XFP Type | SFP |
| Type | Switch - Unmanaged |
| Voltage - Input (Range 1) Maximum | 60 V |
| Voltage - Input (Range 1) Minimum | 9.6 V |
| Voltage - Input (Range 2) Maximum | 30 V |
| Voltage - Input (Range 2) Minimum | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
