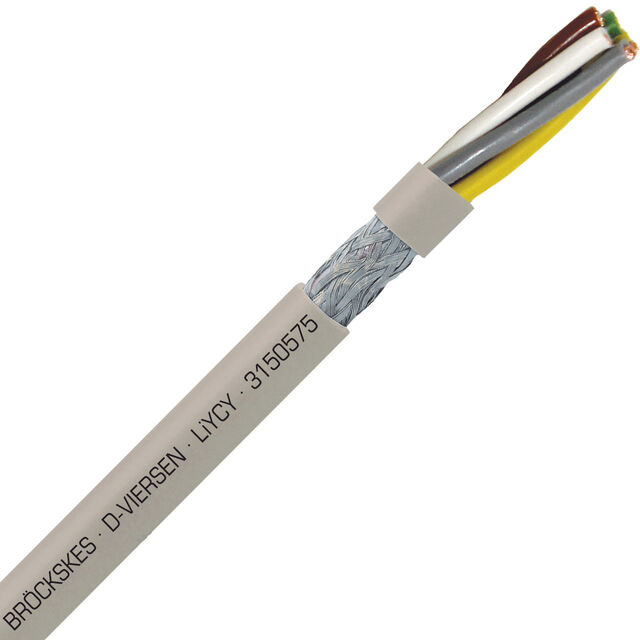

3150575
ActiveSAB North America
CABLE 5COND 19AWG GRY SHLD 1=1FT
3150575
ActiveSAB North America
CABLE 5COND 19AWG GRY SHLD 1=1FT
Description
General part information
3150575
5 Conductor Multi-Conductor Cable Gray 19 AWG Foil, Braid Enter Number of Feet in Order Quantity
Technical Specifications
Parameters and characteristics for this part
| Specification | 3150575 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand Count | 23 |
| Conductor Strand Gauge | 32 AWG |
| Features | Flame Retardant |
| Jacket (Insulation) Diameter | 0.28 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray, Tan |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 5 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Shield Material | Copper, Tinned |
| Shield Type | Braid, Foil |
| Usage | Signal, Control |
| Wire Gauge | 19 AWG |
