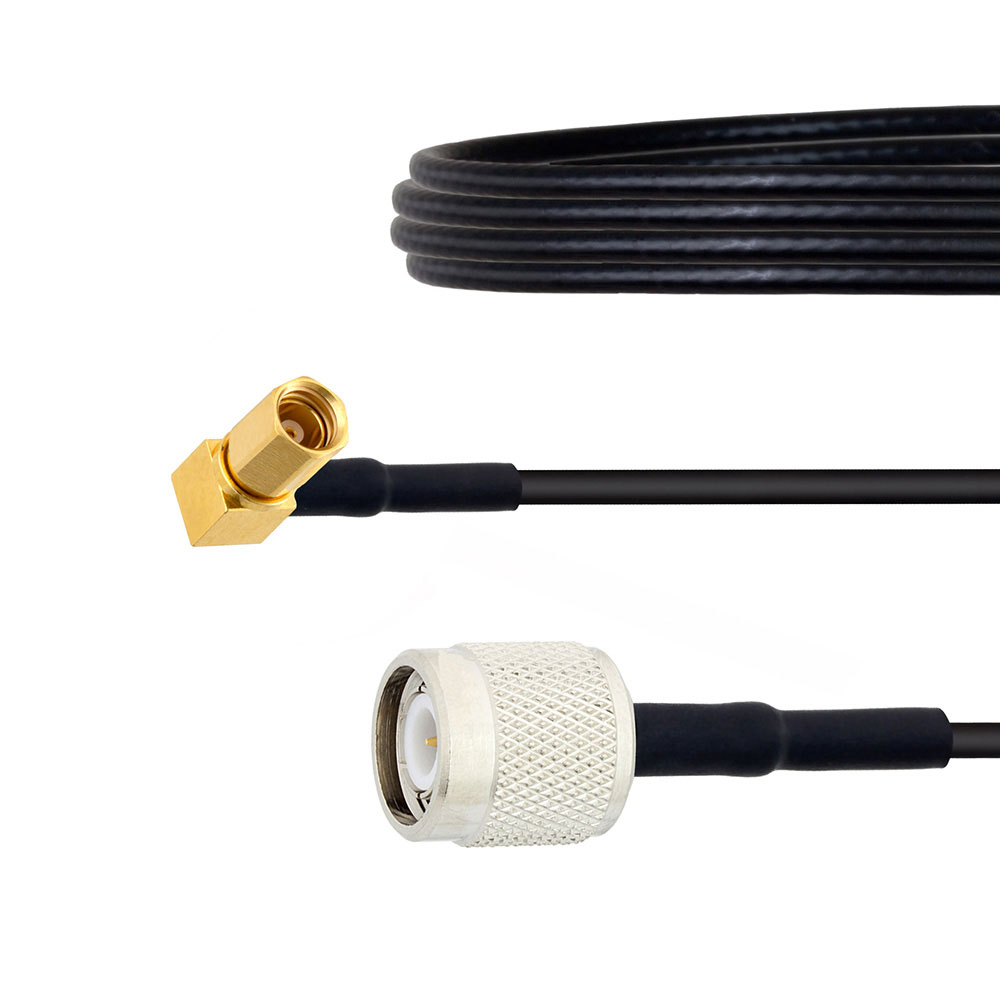

FMCA1494-6
ActiveFairview Microwave
CBL ASSY SSMCPLUG-TNCPLUG 6
FMCA1494-6
ActiveFairview Microwave
CBL ASSY SSMCPLUG-TNCPLUG 6
Description
General part information
FMCA1494-6
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1494-6 |
|---|---|
| 1st Connector | SSMC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Male |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 100 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 12.4 GHz |
| Length | 0.5 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | TNC, SSMC |
