Description
General part information

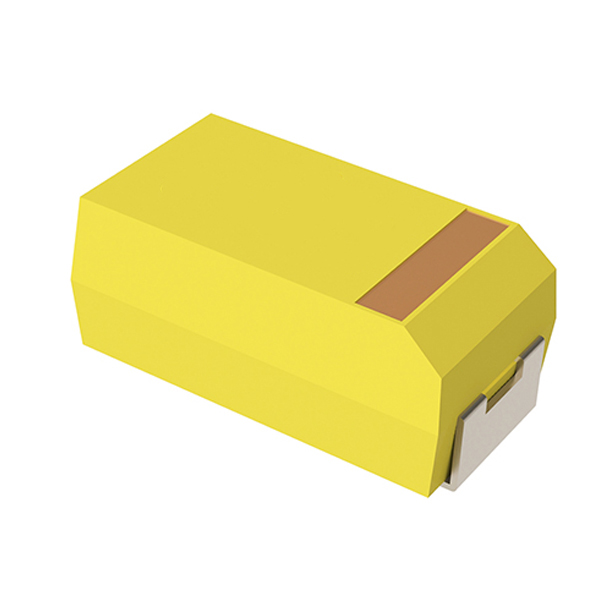

T498A225K010ATE4K6
2.2 µF Molded Tantalum Capacitors 10 V 1206 (3216 Metric) 4.6Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T498A225K010ATE4K6 |
|---|---|
| Capacitance | 2.2 µF |
| ESR (Equivalent Series Resistance) | 4.6 Ohm |
| Features | High Temperature, Automotive |
| Height - Seated (Max) | 0.071 in |
| Lifetime | 2000 Hrs |
| Manufacturer Size Code | A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 10 V |
