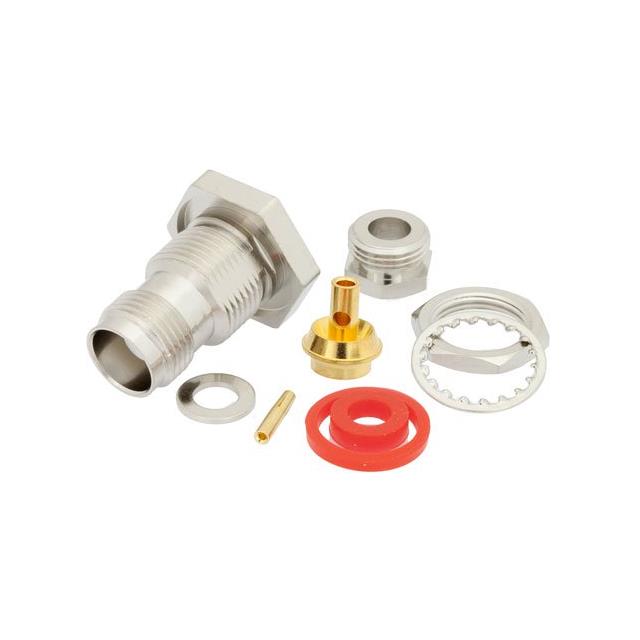

PE4149
ActivePasternack
TNC FEMALE BULKHEAD CONNECTOR CL
PE4149
ActivePasternack
TNC FEMALE BULKHEAD CONNECTOR CL
Description
General part information
PE4149
TNC Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE4149 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-405 |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Clamp |
