1939824

Active

Phoenix Contact

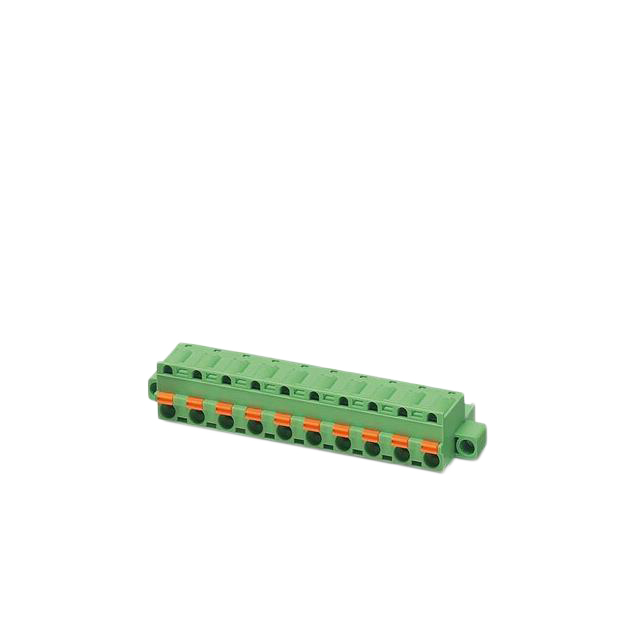

PLUGGABLE TERMINAL BLOCKS 10 POS 7.62MM PITCH PLUG 24-12AWG SPRING

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 10 POS 7.62MM PITCH PLUG 24-12AWG SPRING

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 10.31
Sager	N/A	50	$ 12.14
		150	$ 11.70

General part information

Pluggable Terminal Blocks 10 Pos 7.62mm pitch Plug 24-12AWG Spring

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1939824	GFKC Series

Color	Green	Green
Contact Mating Finish	Tin	Tin
Current - IEC	12 A	12 A
Current - UL	10 A	10 A
Features	Retention Latches (Non-Wire Side), Mating Flange	Retention Latches (Non-Wire Side), Mating Flange
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	0.591 in	0.591 in
Insulation Height	15 mm	15 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	10	6 - 12
Pitch [x]	0.3 in	0.3 in
Pitch [x]	7.62 mm	7.62 mm
Positions Per Level	10	6 - 12
Termination Style	Screwless - Push-In Spring	Screwless - Push-In Spring
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - IEC	1 kV	1 kV
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	26 AWG	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛ [Max]	2.5 mm˛	2.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.2 mm˛	0.2 mm˛
Wire Gauge or Range - mm²	-	0.2 mm²
Wire Gauge or Range - mm²	-	2.5 mm²
Wire Strip Length	10 mm	10 mm

Pluggable Terminal Blocks 10 Pos 7.62mm pitch Plug 24-12AWG Spring

Part	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Strip Length	Type	Positions Per Level	Voltage - IEC	Color	Pitch [x]	Pitch [x]	Current - UL	Mounting Type	Material Flammability Rating	Number of Positions	Number of Levels	Termination Style	Voltage - UL	Current - IEC	Insulation Height	Insulation Height	Housing Material	Features	Contact Mating Finish	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
Phoenix Contact 1939785	12 AWG	26 AWG	0.2 mm²	2.5 mm²	10 mm	Plug, Female Sockets	6	1 kV	Green	0.3 in	7.62 mm	10 A	Free Hanging (In-Line)	UL94 V-0	6	1	Screwless - Push-In Spring	300 V	12 A	0.591 in	15 mm	Polyamide (PA), Nylon	Mating Flange, Retention Latches (Non-Wire Side)	Tin
Phoenix Contact 1939824	12 AWG	26 AWG			10 mm	Plug, Female Sockets	10	1 kV	Green	0.3 in	7.62 mm	10 A	Free Hanging (In-Line)	UL94 V-0	10	1	Screwless - Push-In Spring	300 V	12 A	0.591 in	15 mm	Polyamide (PA), Nylon	Mating Flange, Retention Latches (Non-Wire Side)	Tin	0.2 mm˛	2.5 mm˛
Phoenix Contact 1939840	12 AWG	26 AWG			10 mm	Plug, Female Sockets	12	1 kV	Green	0.3 in	7.62 mm	10 A	Free Hanging (In-Line)	UL94 V-0	12	1	Screwless - Push-In Spring	300 V	12 A	0.591 in	15 mm	Polyamide (PA), Nylon	Mating Flange, Retention Latches (Non-Wire Side)	Tin	0.2 mm˛	2.5 mm˛
