CY8C4127FNI-BL493T

Unknown

Infineon Technologies

IC RF TXRX+MCU BLE 68WLCSP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CY8C4127FNI-BL493T

Unknown

Infineon Technologies

IC RF TXRX+MCU BLE 68WLCSP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY8C4127FNI-BL493T

Current - Receiving [Max]	18.7 mA
Current - Receiving [Min]	16.4 mA
Current - Transmitting [Max]	20 mA
Current - Transmitting [Min]	16.5 mA
Frequency	2.4 GHz
Memory Size	128 kB, 16 kB
Modulation	GFSK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

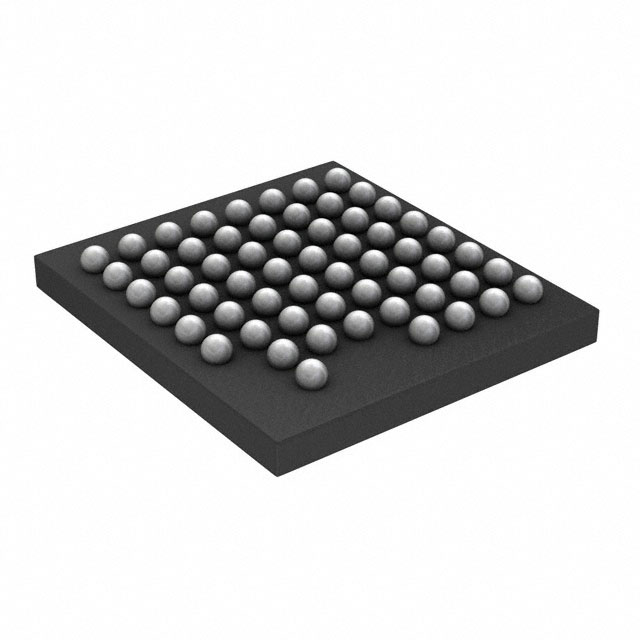

Package / Case	WLCSP, 68-UFBGA
Power - Output	3 dBm
Protocol	Bluetooth v4.2
RF Family/Standard	General ISM > 1GHz, Bluetooth
Sensitivity	-92 dBm
Serial Interfaces	UART, I2C, SPI
Supplier Device Package	68-WLCSP
Supplier Device Package [x]	3.52
Supplier Device Package [y]	3.91
Type	TxRx + MCU
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	1.8 V

CY8C4127 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Core Size	Program Memory Type	RAM Size	Connectivity	Data Converters	Data Converters	Peripherals	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Number of I/O	Program Memory Size	Mounting Type	Package / Case	Supplier Device Package	Core Processor	Oscillator Type	Speed	Serial Interfaces	Memory Size	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Modulation	Power - Output	RF Family/Standard	Current - Transmitting [Max]	Current - Transmitting [Min]	Supplier Device Package [x]	Supplier Device Package [y]	Frequency	Protocol	Current - Receiving [Min]	Current - Receiving [Max]	Sensitivity
Infineon Technologies CY8C4127AZS-S445	105 °C	-40 °C	32-Bit	FLASH	16 K	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	16 b	20x10/12b SAR	Brown-out Detect/Reset CapSense LCD POR PWM WDT	1.71 V	5.5 V	54	128 KB	Surface Mount	64-LQFP	64-TQFP (10x10)	ARM® Cortex®-M0+	Internal	24 MHz
Infineon Technologies CY8C4127AZE-S455	125 °C	-40 °C	32-Bit	FLASH	16 K	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART		16x10b 20x12b SAR	Brown-out Detect/Reset CapSense LCD POR PWM WDT	1.71 V	5.5 V	54	128 KB	Surface Mount	64-LQFP	64-TQFP (10x10)	ARM® Cortex®-M0+	Internal	24 MHz
Infineon Technologies CY8C4127AXI-M485	85 °C	-40 °C	32-Bit Single-Core	FLASH	16 K	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART		2xIDAC A/D 16x12b SAR	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	1.71 V	5.5 V	51	128 KB	Surface Mount	64-LQFP	64-TQFP	ARM® Cortex®-M0	Internal	24 MHz
Infineon Technologies CY8C4127AZE-S445T	125 °C	-40 °C	32-Bit	FLASH	16 K	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART		16x10b 20x12b SAR	Brown-out Detect/Reset CapSense LCD POR PWM WDT	1.71 V	5.5 V	54	128 KB	Surface Mount	64-LQFP	64-TQFP (10x10)	ARM® Cortex®-M0+	Internal	24 MHz
Infineon Technologies CY8C4127AZE-S445	125 °C	-40 °C	32-Bit	FLASH	16 K	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART		16x10b 20x12b SAR	Brown-out Detect/Reset CapSense LCD POR PWM WDT	1.71 V	5.5 V	54	128 KB	Surface Mount	64-LQFP	64-TQFP (10x10)	ARM® Cortex®-M0+	Internal	24 MHz
Infineon Technologies CY8C4127AZI-S453	85 °C	-40 °C	32-Bit Single-Core	FLASH	16 K	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART		A/D 16x10b A/D 16x12b SAR D/A 2x7b	Brown-out Detect/Reset CapSense LCD POR PWM WDT	1.71 V	5.5 V		128 KB	Surface Mount	48-LQFP	48-TQFP (7x7)	ARM® Cortex®-M0+	Internal	24 MHz
Infineon Technologies CY8C4127AZI-S443	85 °C	-40 °C	32-Bit	FLASH	16 K	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART		A/D 16x10/12b SAR D/A 2x7b	Brown-out Detect/Reset CapSense LCD POR PWM WDT	1.71 V	5.5 V		128 KB	Surface Mount	48-LQFP	48-TQFP (7x7)	ARM® Cortex®-M0+	Internal	24 MHz
Infineon Technologies CY8C4127FNI-BL493T	85 °C	-40 °C												Surface Mount	68-UFBGA WLCSP	68-WLCSP				I2C SPI UART	16 kB 128 kB	TxRx + MCU	1.8 V	5.5 V	GFSK	3 dBm	Bluetooth General ISM > 1GHz	20 mA	16.5 mA	3.52	3.91	2.4 GHz	Bluetooth v4.2	16.4 mA	18.7 mA	-92 dBm
Infineon Technologies CY8C4127AZQ-S455	105 °C	-40 °C	32-Bit Single-Core	FLASH	16 K	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART		A/D 16x10b A/D 16x12b SAR D/A 2x7b	Brown-out Detect/Reset CapSense LCD POR PWM WDT	1.71 V	5.5 V	54	128 KB	Surface Mount	64-LQFP	64-TQFP (10x10)	ARM® Cortex®-M0+	Internal	24 MHz
Infineon Technologies CY8C4127LQS-S443	105 °C	-40 °C	32-Bit	FLASH	16 K	FIFO I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART		16x12b Sigma-Delta A/D 16x10b SAR	Brown-out Detect/Reset DMA LCD POR PWM Temp Sensor TRNG WDT	1.71 V	5.5 V	34	128 KB	Surface Mount	40-UFQFN Exposed Pad	40-QFN (6x6)	ARM® Cortex®-M0+	External Internal	24 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 3.77

Description

General part information

CY8C4127 Series

IC RF TxRx + MCU Bluetooth, General ISM > 1GHz Bluetooth v4.2 2.4GHz 68-UFBGA, WLCSP
