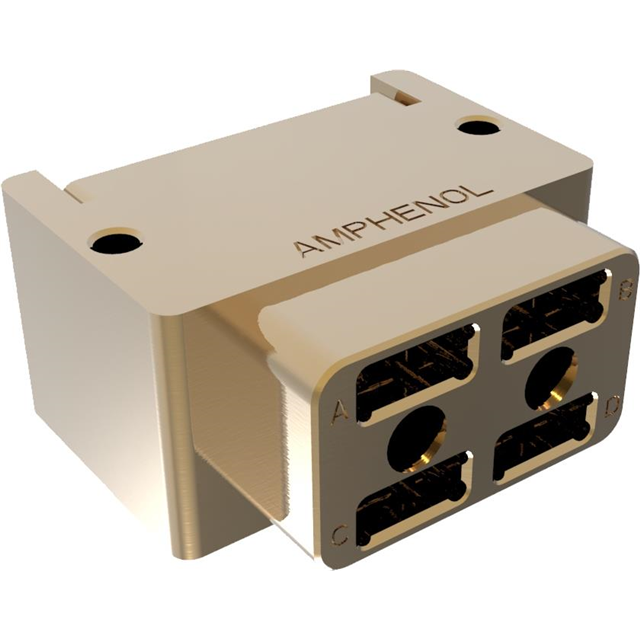

10-504637-010
ActiveAmphenol Aerospace Operations
VITA 66.1 FIBER MODULE 4MT DOUBL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10-504637-010
ActiveAmphenol Aerospace Operations
VITA 66.1 FIBER MODULE 4MT DOUBL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10-504637-010 | 10-504637 Series |
|---|---|---|
| Connector Style | VITA 66.1 | VITA 66.1, VITA 66.4 |
| Connector Type | Module | Module |
| Connector Usage | Backplane | Backplane |
| Features | Board Guide | Board Guide |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Columns | 4 | 2 - 4 |
| Number of Positions | 8 | 4 - 8 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 - 3 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Termination | Wire Wrap | Wire Wrap |
10-504637 Series
VITA 66.1 FIBER MODULE 2MT DERIV
| Part | Number of Positions Loaded | Number of Rows | Mounting Type | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Features | Number of Columns | Termination | Number of Positions | Connector Type | Connector Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations 10-504637-013 | All | 2 | Free Hanging (In-Line) | VITA 66.1 | -55 °C | 125 °C | Board Guide | 4 | Wire Wrap | 6 | Module | Backplane |
Amphenol Aerospace Operations 10-504637-010 | All | 2 | Free Hanging (In-Line) | VITA 66.1 | -55 °C | 125 °C | Board Guide | 4 | Wire Wrap | 8 | Module | Backplane |
Amphenol Aerospace Operations 10-504637-009 | All | 2 | Free Hanging (In-Line) | VITA 66.4 | -55 °C | 125 °C | Board Guide | 2 | Wire Wrap | 4 | Module | Backplane |
Amphenol Aerospace Operations 10-504637-004 | All | 2 | Free Hanging (In-Line) | VITA 66.1 | -55 °C | 125 °C | Board Guide | 4 | Wire Wrap | 6 | Module | Backplane |
Amphenol Aerospace Operations 10-504637-012 | All | 3 | Free Hanging (In-Line) | VITA 66.4 | -55 °C | 125 °C | Board Guide | 2 | Wire Wrap | 4 | Module | Backplane |
Amphenol Aerospace Operations 10-504637-008 | All | 3 | Free Hanging (In-Line) | VITA 66.4 | -55 °C | 125 °C | Board Guide | 2 | Wire Wrap | 4 | Module | Backplane |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 560.44 | |
Description
General part information
10-504637 Series
8 Connector Module Free Hanging (In-Line) VITA 66.1
Documents
Technical documentation and resources
