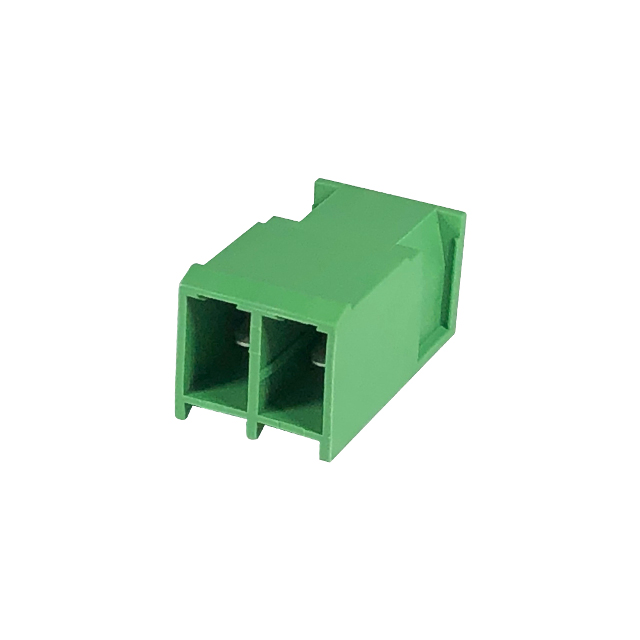

ECH762R-02P
ActiveDinkle Corporation, USA
TERM BLK 2POS 7.62MM HDR
ECH762R-02P
ActiveDinkle Corporation, USA
TERM BLK 2POS 7.62MM HDR
Description
General part information
ECH762R-02P
2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) 90°, Right Angle Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | ECH762R-02P |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - IEC | 41 A |
| Current - UL | 30 A |
| Header Orientation | Right Angle |
| Header Orientation Angle | 90 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.3 in |
| Positions Per Level | 2 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - IEC | 1000 V |
| Voltage - UL | 300 V |
