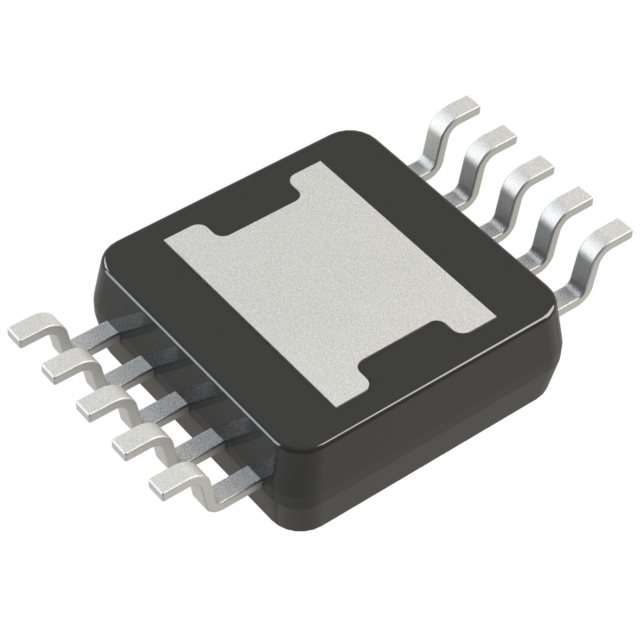

IQS263B-0-MSR

Obsolete

Azoteq (Pty) Ltd

CAPACITIVE SENSOR 3CH 10MSOP

Search across all available documentation for this part.

Obsolete

Azoteq (Pty) Ltd

CAPACITIVE SENSOR 3CH 10MSOP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IQS263B-0-MSR	IQS263 Series

Current - Supply	80 mA	80 - 305 µA
Interface	I2C	I2C
Mounting Type	Surface Mount	Surface Mount
Number of Inputs	3	3
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Package / Case	10-MSOP, 10-TFSOP	10-WFDFN Exposed Pad, 10-MSOP, 10-TFSOP
Package / Case [x]	3 mm	3 mm
Package / Case [x]	0.118 in	0.118 in
Proximity Detection	True	True
Resolution	8 b	8 b
Sensing Range	-	Slider, Scroll Wheel, 3 Buttons/Keys
Sensor Type	-	Touch, Capacitive
Supplied Contents	-	Board(s)
Supplier Device Package	10-MSOP	10-DFN (3x3), 10-MSOP
Type	Slider, Wheel, Buttons	Slider, Wheel, Buttons
Utilized IC / Part	-	IQS263
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.8 V	1.8 V

CAPACITIVE SENSOR 3CH 10DFN

Part	Supplier Device Package	Number of Inputs	Resolution	Current - Supply	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Supplied Contents	Utilized IC / Part	Sensor Type	Sensing Range	Package / Case [x]	Package / Case [x]
Azoteq (Pty) Ltd IQS263B-0-DNR	10-DFN (3x3)	3	8 b	305 µA	3.6 V	1.8 V	Buttons, Slider, Wheel	10-WFDFN Exposed Pad	Surface Mount	85 °C	-20 C	I2C
Azoteq (Pty) Ltd IQS263BEV02					3.6 V	1.8 V							Board(s)	IQS263	Touch, Capacitive	3 Buttons/Keys, Scroll Wheel, Slider
Azoteq (Pty) Ltd IQS263B-0-MSR	10-MSOP	3	8 b	80 mA	3.6 V	1.8 V	Buttons, Slider, Wheel	10-MSOP, 10-TFSOP	Surface Mount	85 °C	-20 C	I2C					3 mm	0.118 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Capacitive Touch Buttons, Slider, Wheel 10-MSOP

Technical documentation and resources
