TX13/7.9/6.4-3E65
ActiveFerroxcube
FERRITE CORE TOROID
TX13/7.9/6.4-3E65
ActiveFerroxcube
FERRITE CORE TOROID
Description
General part information
TX13/7.9/6.4-3E65

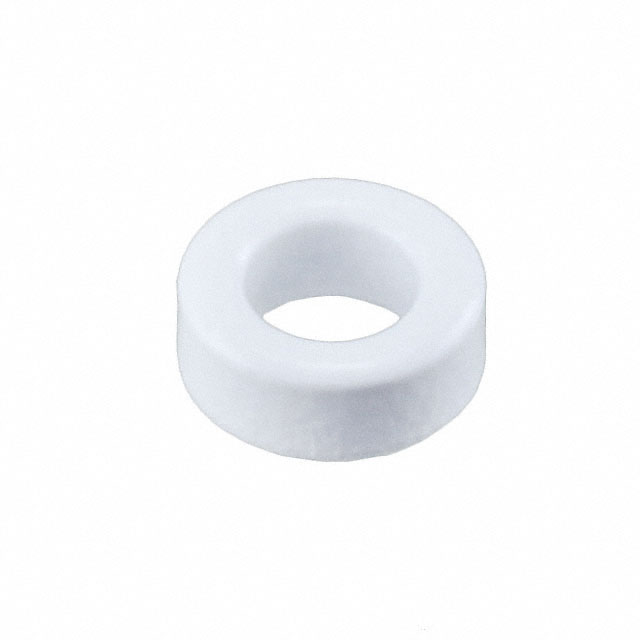

Epoxy Ferrite Core Toroid Type Length Width 0.526" (13.35mm) Diameter 0.275" (7.00mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | TX13/7.9/6.4-3E65 |
|---|---|
| Core Factor (ΣI/A) | 2.21 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 2.21 mm⁻¹ |
| Core Type | Toroid |
| Diameter | 0.526 in |
| Effective Area (Ae) | 14.1 mm² |
| Effective Length (le) | 31.2 mm |
| Effective Magnetic Volume (Ve) | 442 mm³ |
| Effective Permeability (µe) | 5200 |
| Finish | Epoxy |
| Gap | Ungapped |
| Height | 0.275 in |
| Package Height | 6.4 mm |
| Package Length | 13 mm |
| Package Name | TX |
| Package Width | 7.9 mm |
| Tolerance | 25 % |
