3240316

Active

Phoenix Contact

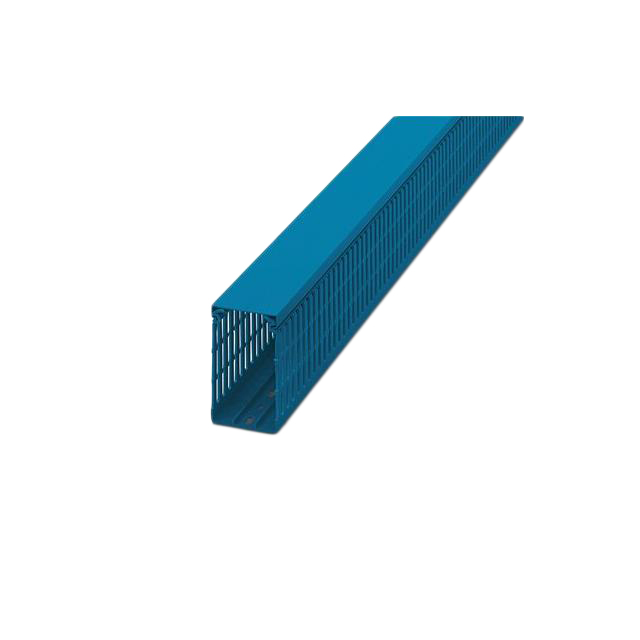

WIRE DUCT SOLID 2PC RIVET 6.56'

Search across all available documentation for this part.

Active

Phoenix Contact

WIRE DUCT SOLID 2PC RIVET 6.56'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3240316	CD 60 Series

Color	Blue	Blue, White
Features	Separate Snap in Lid (Included)	Separate Snap in Lid (Included)
Height	-	80 mm
Height	-	3.15 in
Height [z]	100 mm	40 - 100 mm
Height [z]	3.937 in	1.575 - 3.937 in
Length [x]	2 m	2 m
Length [x]	6.56 ft	6.56 ft
Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Mounting Type	Rivet	Rivet
Width [x]	60 mm	60 mm
Width [x]	2.362 in	2.362 in
Wire Duct Type	2 Piece	2 Piece
Wire Duct Type	Solid (Raceway)	Solid (Raceway)

WIRE DUCT SOLID 2PC RIVET 6.56'

Part	Mounting Type	Length [x]	Length [x]	Color	Material	Width [x]	Width [x]	Wire Duct Type	Wire Duct Type	Height [z]	Height [z]	Features	Height [diameter]	Height [diameter]
Phoenix Contact 3240313	Rivet	2 m	6.56 ft	Blue	Poly-Vinyl Chloride (PVC)	60 mm	2.362 in	2 Piece	Solid (Raceway)	1.575 in	40 mm	Separate Snap in Lid (Included)
Phoenix Contact 3240316	Rivet	2 m	6.56 ft	Blue	Poly-Vinyl Chloride (PVC)	60 mm	2.362 in	2 Piece	Solid (Raceway)	3.937 in	100 mm	Separate Snap in Lid (Included)
Phoenix Contact 3240629	Rivet	2 m	6.56 ft	White	Poly-Vinyl Chloride (PVC)	60 mm	2.362 in	2 Piece	Solid (Raceway)	2.362 in	60 mm	Separate Snap in Lid (Included)
Phoenix Contact 3240628	Rivet	2 m	6.56 ft	White	Poly-Vinyl Chloride (PVC)	60 mm	2.362 in	2 Piece	Solid (Raceway)	1.575 in	40 mm	Separate Snap in Lid (Included)
Phoenix Contact 3240630	Rivet	2 m	6.56 ft	White	Poly-Vinyl Chloride (PVC)	60 mm	2.362 in	2 Piece	Solid (Raceway)			Separate Snap in Lid (Included)	80 mm	3.15 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.75

General part information

Wire Duct Blue Solid (Raceway), 2 Piece Rivet 6.56' (2.00m)

Technical documentation and resources
