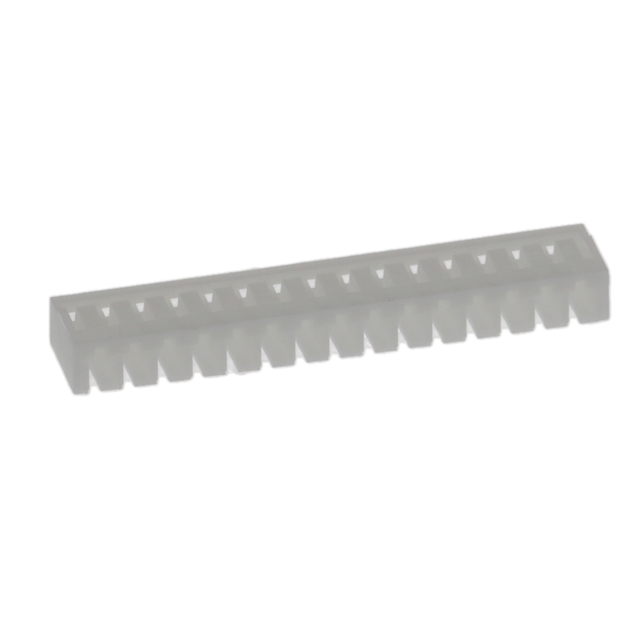

10156612-1500LF
ActiveAmphenol ICC (FCI)
CONN BOARD-IN HSG 15POS 2.00MM
Deep-Dive with AI
Search across all available documentation for this part.
10156612-1500LF
ActiveAmphenol ICC (FCI)
CONN BOARD-IN HSG 15POS 2.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10156612-1500LF |
|---|---|
| Color | Natural |
| Connector Type | Board-In |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Through Hole, Right Angle |
| Note | Contacts Not Included |
| Number of Positions | 15 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1000 | $ 0.25 | |
Description
General part information
10156612 Series
15 Rectangular Connectors - Housings Board-In Natural 0.079" (2.00mm)
