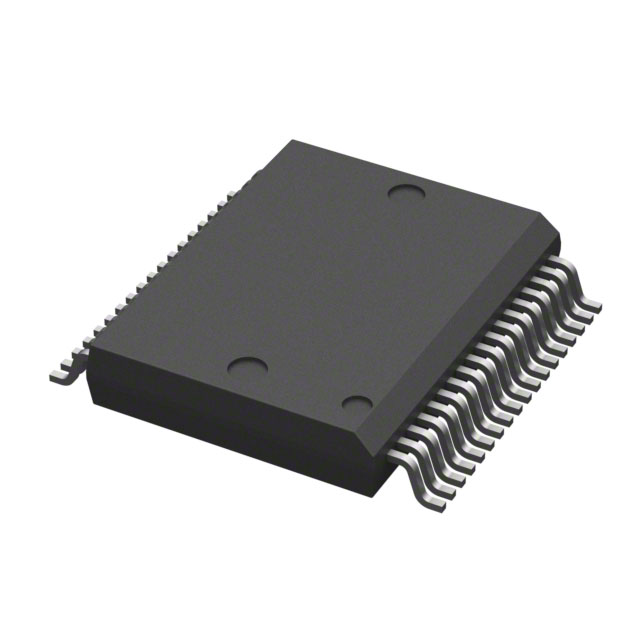

VNH9013Y
ActiveIC HALF BRIDGE DRVR 40A 36PWRSSO
Deep-Dive with AI
Search across all available documentation for this part.
VNH9013Y
ActiveIC HALF BRIDGE DRVR 40A 36PWRSSO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VNH9013Y | VNH9013 Series |
|---|---|---|
| - | - | |
| Applications | DC Motors, General Purpose | DC Motors, General Purpose |
| Current - Output / Channel [custom] | 40 A | 40 A |
| Grade | Automotive | Automotive |
| Load Type | Resistive, Inductive | Resistive, Inductive |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature | - | 175 °C |
| Operating Temperature [Max] | 175 °C | 175 °C |
| Operating Temperature [Min] | -40 C | -40 C |
| Output Configuration | Half Bridge (2) | Half Bridge (2) |
| Package / Case | 0.295 in | 0.295 in |
| Package / Case | 36-PowerBFSOP | 36-PowerBFSOP |
| Package / Case [x] | 7.5 mm | 7.5 mm |
| Qualification | AEC-Q100 | AEC-Q100 |
| Rds On (Typ) [custom] | 6 mOhm | 6 mOhm |
| Rds On (Typ) [custom] | 7.8 mOhm | 7.8 mOhm |
| Supplier Device Package | PowerSSO-36 TP | PowerSSO-36 TP |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Voltage - Load | 80 V | 80 V |
| Voltage - Supply | 80 V | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
VNH9013 Series
Automotive integrated H-bridge
| Part | Output Configuration | Grade | Operating Temperature | Technology | Qualification | Package / Case | Package / Case [x] | Package / Case | Load Type | Mounting Type | Rds On (Typ) [custom] | Rds On (Typ) [custom] | Voltage - Load | Supplier Device Package | Current - Output / Channel [custom] | Applications | Voltage - Supply | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VNH9013YTR | |||||||||||||||||||
STMicroelectronics VNH9013YTR | |||||||||||||||||||
STMicroelectronics VNH9013YTR | Half Bridge (2) | Automotive | 175 °C | MOSFET (Metal Oxide) | AEC-Q100 | 0.295 in | 7.5 mm | 36-PowerBFSOP | Inductive, Resistive | Surface Mount | 6 mOhm | 7.8 mOhm | 80 V | PowerSSO-36 TP | 40 A | DC Motors, General Purpose | 80 V | ||
STMicroelectronics VNH9013Y | Half Bridge (2) | Automotive | MOSFET (Metal Oxide) | AEC-Q100 | 0.295 in | 7.5 mm | 36-PowerBFSOP | Inductive, Resistive | Surface Mount | 6 mOhm | 7.8 mOhm | 80 V | PowerSSO-36 TP | 40 A | DC Motors, General Purpose | 80 V | -40 C | 175 °C |
Description
General part information
VNH9013 Series
The device is an automotive integrated H-bridge intended for a wide range of automotive applications driving DC motors. The device incorporates a dual channel and two single channel MOSFETs. The device is designed using STMicroelectronics®well known and proven proprietary VIPower®M0-S9 technology that allows to integrate in a package four different channels in H-bridge topology.
This package, specifically designed for the harsh automotive environment offers improved thermal performance thanks to exposed die pads. Moreover, its fully symmetrical mechanical design allows superior manufacturability at board level.
