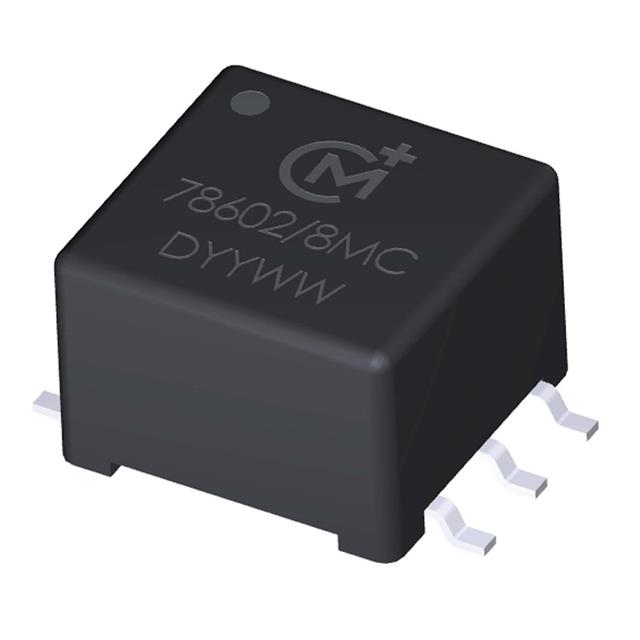

SMD TRANSFORMER 1:1 1000UH 15VUS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
78601/8MC
ActiveMurata Power Solutions Inc.
SMD TRANSFORMER 1:1 1000UH 15VUS ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 78601/8MC | 78601 Series |
|---|---|---|
| ET (Volt-Time) | - | 10 VµS |
| ET (Volt-Time) | - | 4 - 56 VµS |
| Height - Seated (Max) | - | 6.35 mm |
| Height - Seated (Max) | - | 0.25 in |
| Inductance | - | 1 - 850 µH |
| Mounting Type | - | Surface Mount, Through Hole |
| null | - | |
| Operating Temperature | - | 70 °C |
| Operating Temperature | - | 0 °C |
| Size / Dimension | - | 9.52 mm |
| Size / Dimension | - | 0.354 in |
| Size / Dimension | - | 0.375 in |
| Size / Dimension | - | 9 mm |
| Transformer Type | - | General Purpose |
| Turns Ratio - Primary:Secondary | - | 1:1 |
| Weight | - | 1.1 g |
| Weight | - | 0.039 oz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
78601 Series
TRANSFORMER 1:1 350UH 10VUS
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Transformer Type | Inductance | Turns Ratio - Primary:Secondary | Height - Seated (Max) | Height - Seated (Max) [Max] | ET (Volt-Time) [custom] | ET (Volt-Time) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 78601/2JC | Surface Mount | 70 °C | 0 °C | General Purpose | 350 µH | 1:1 | 6.35 mm | 0.25 in | 10 VµS | |||||||
Murata Power Solutions Inc. 78601/4C | Through Hole | 70 °C | 0 °C | General Purpose | 67 µH | 1:1 | 6.35 mm | 0.25 in | 4 VµS | 9.52 mm | 0.354 in | 0.375 in | 9 mm | |||
Murata Power Solutions Inc. 78601/3JC-R | ||||||||||||||||
Murata Power Solutions Inc. 78601/2MC | ||||||||||||||||
Murata Power Solutions Inc. 78601/9JC | ||||||||||||||||
Murata Power Solutions Inc. 78601/8MC | ||||||||||||||||
Murata Power Solutions Inc. 78601/4MC | ||||||||||||||||
Murata Power Solutions Inc. 78601/4MC | Surface Mount | 70 °C | 0 °C | General Purpose | 67 µH | 1:1 | 6.35 mm | 0.25 in | 4 VµS | 9.52 mm | 0.354 in | 0.375 in | 9 mm | |||
Murata Power Solutions Inc. 78601/8C | ||||||||||||||||
Murata Power Solutions Inc. 78601/16MC-R | Surface Mount | 70 °C | 0 °C | General Purpose | 4 mH | 1:1 | 6.35 mm | 0.25 in | 28 VµS | 9.52 mm | 0.354 in | 0.375 in | 9 mm |
Description
General part information
78601 Series
1mH General Purpose Pulse Transformer 1:1 Surface Mount
