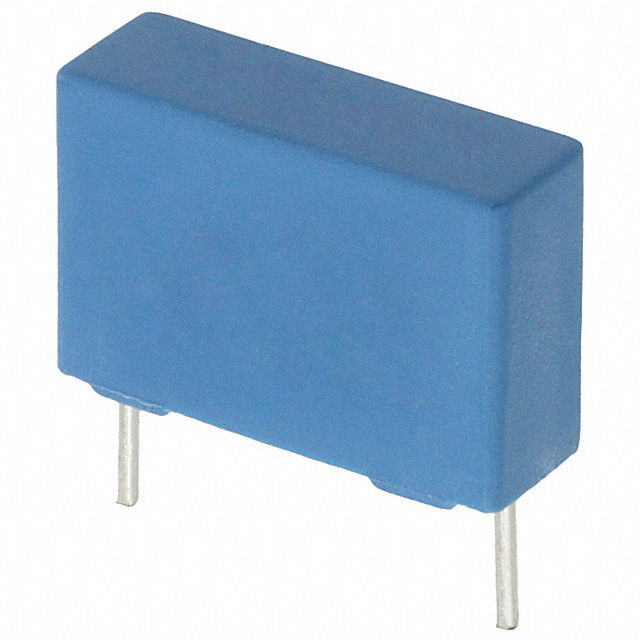

B32022A3153K000
ActiveEPCOS - TDK Electronics
CAP FILM 0.015UF 10% 1.5KVDC RAD
B32022A3153K000
ActiveEPCOS - TDK Electronics
CAP FILM 0.015UF 10% 1.5KVDC RAD
Description
General part information
B32022A3153K000
0.015 µF Film Capacitor 300V 1500V (1.5kV) Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B32022A3153K000 |
|---|---|
| Applications | RFI Suppression, EMI |
| Capacitance | 0.015 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.433 in |
| Lead Spacing | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Ratings | Y2 |
| Size / Dimension Length | 0.709 in |
| Size / Dimension Width | 0.236 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 300 V |
| Voltage Rating - DC | 1500 V |
