1798906
ActivePhoenix Contact
CONN WIRE TO BOARD M 10 POS 3.81MM SOLDER ST TOP ENTRY THRU-HOLE TAPE
1798906
ActivePhoenix Contact
CONN WIRE TO BOARD M 10 POS 3.81MM SOLDER ST TOP ENTRY THRU-HOLE TAPE
Description
General part information
1798906

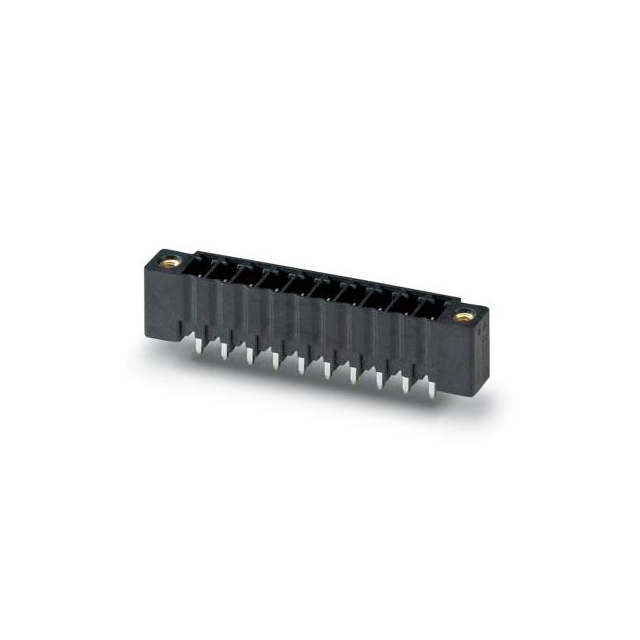

10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1798906 |
|---|---|
| Color | Black |
| Contact Mating Finish | Gold |
| Contact Tail Length | 0.102 in |
| Current - IEC | 8 A |
| Current - UL | 8 A |
| Features | Pick and Place Cap, Mating Flange |
| Header Orientation | Vertical |
| Insulation Height | 0.362 in |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 10 |
| Pitch | 0.15 in |
| Positions Per Level | 10 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - IEC | 160 V |
| Voltage - UL | 300 V |
