Specification	53-993458

Approval Agency	UL
Attachment Method	Pressure Sensitive Adhesive (PSA)
Color	Off-White
Features	User Selectable Voltage, Leads Potted
Length	24 in
Length - Lead Wire	12 in
Material	Polyester
Material - Insulation	PTFE, Polytetrafluoroethylene
Power (Watts)	1440 W
Resistance	100 mOhms
Shape	Rectangular
Temperature Rating	250 °F
Termination	Wire Leads

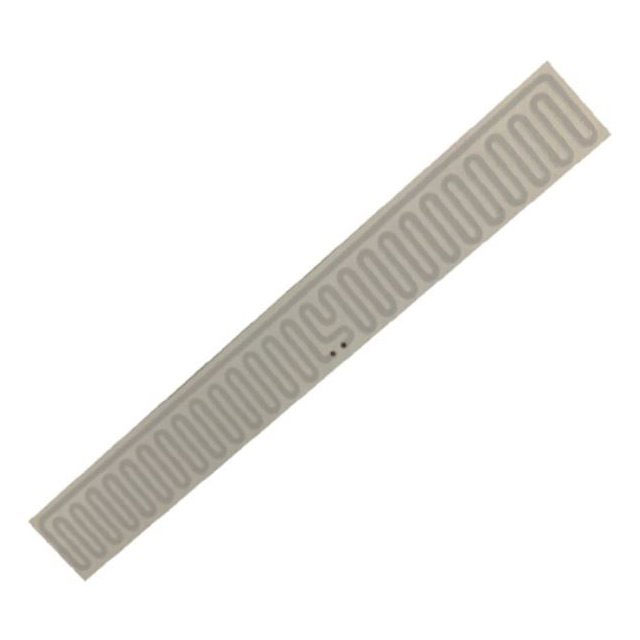

Type	Flexible Heater, Foil
Voltage	12 VDC
Watt Density	10 W/in²
Width	6 in
Wire Gauge	18 AWG
