SMF-2432SIC-TR

Active

Lumex Opto/Components Inc.

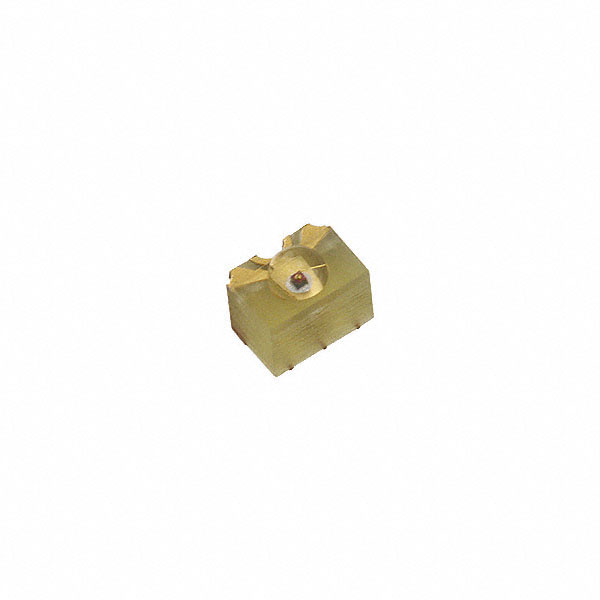

LED RED CLEAR SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

SMF-2432SIC-TR

Active

Lumex Opto/Components Inc.

LED RED CLEAR SMD R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.50
		10	$ 0.33
		100	$ 0.22
	Digi-Reel®	1	$ 0.50
		10	$ 0.33
		100	$ 0.22
	Tape & Reel (TR)	500	$ 0.22
		1000	$ 0.17
		2500	$ 0.15
		5000	$ 0.14
		12500	$ 0.14
		25000	$ 0.13
		50000	$ 0.13

Description

General part information

SMF-2432 Series

Red LED Indication - Discrete 2V 3-SMD, No Lead

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMF-2432SIC-TR	SMF-2432 Series

Color	Red	Green, Yellow, Red, Blue
Configuration	Standard	Standard, Single
Current	-	20mA Yellow, 20mA Green
Current - Test	20 mA	20 mA
Height (Max) [Max]	2.4 mm	2.4 mm
Lens Color	Colorless	Colorless
Lens Size [diameter]	1.6 mm	1.6 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Clear	Clear
Lens Type	-	Clear
Millicandela Rating	60 mcd	14 - 170 mcd
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Package / Case	3-SMD, No Lead	3-SMD, No Lead
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	3.1 mm	3.1 mm
Supplier Device Package	SMD	SMD
Viewing Angle	110 °	110 °
Viewing Angle	-	90 °
Voltage - Forward (Vf) (Typ)	2 V	2 - 3.5 V
Voltage Rating	-	2.1 - 2.2 V
Wavelength - Peak	636 nm	525 - 636 nm

SMF-2432 Series

LED GREEN CLEAR SMD R/A

Part	Lens Style	Mounting Type	Lens Color	Wavelength - Peak	Millicandela Rating	Height (Max) [Max]	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Color	Package / Case	Lens Transparency	Current - Test	Configuration	Lens Size [diameter]	Voltage Rating	Lens Type	Current	Viewing Angle [custom]
Lumex Opto/Components Inc. SMF-2432GC-TR	Round with Domed Top	Surface Mount, Right Angle	Colorless	565 nm	14 mcd	2.4 mm	2.2 V	SMD	110 °	3.2 mm	3.1 mm	Green	3-SMD, No Lead	Clear	20 mA	Standard	1.6 mm
Lumex Opto/Components Inc. SMF-2432UPGC-TR	Round with Domed Top	Surface Mount, Right Angle	Colorless	525 nm	160 mcd	2.4 mm	3.5 V	SMD	110 °	3.2 mm	3.1 mm	Green	3-SMD, No Lead	Clear	20 mA	Standard	1.6 mm
Lumex Opto/Components Inc. SMF-2432SYC-TR	Round with Domed Top	Surface Mount, Right Angle	Colorless	590 nm	170 mcd	2.4 mm	2.1 V	SMD	110 °	3.2 mm	3.1 mm	Yellow	3-SMD, No Lead	Clear	20 mA	Standard	1.6 mm
Lumex Opto/Components Inc. SMF-2432GYC-TR	Round with Domed Top	Surface Mount, Right Angle		565 nm, 585 nm								Green, Yellow				Single	1.6 mm	2.1 V, 2.2 V	Clear	20mA Green, 20mA Yellow	90 °
Lumex Opto/Components Inc. SMF-2432SIC-TR	Round with Domed Top	Surface Mount, Right Angle	Colorless	636 nm	60 mcd	2.4 mm	2 V	SMD	110 °	3.2 mm	3.1 mm	Red	3-SMD, No Lead	Clear	20 mA	Standard	1.6 mm
Lumex Opto/Components Inc. SMF-2432USBC-TR	Round with Domed Top	Surface Mount, Right Angle	Colorless		140 mcd	2.4 mm	3.5 V	SMD	110 °	3.2 mm	3.1 mm	Blue	3-SMD, No Lead	Clear	20 mA	Standard	1.6 mm
Lumex Opto/Components Inc. SMF-2432SUGC-TR	Round with Domed Top	Surface Mount, Right Angle			40 mcd				110 °			Green				Single	1.6 mm		Clear
Lumex Opto/Components Inc. SMF-2432YC-TR	Round with Domed Top	Surface Mount, Right Angle	Colorless	585 nm	14 mcd	2.4 mm	2 V	SMD	110 °	3.2 mm	3.1 mm	Yellow	3-SMD, No Lead	Clear	20 mA	Standard	1.6 mm
