25LB22-H

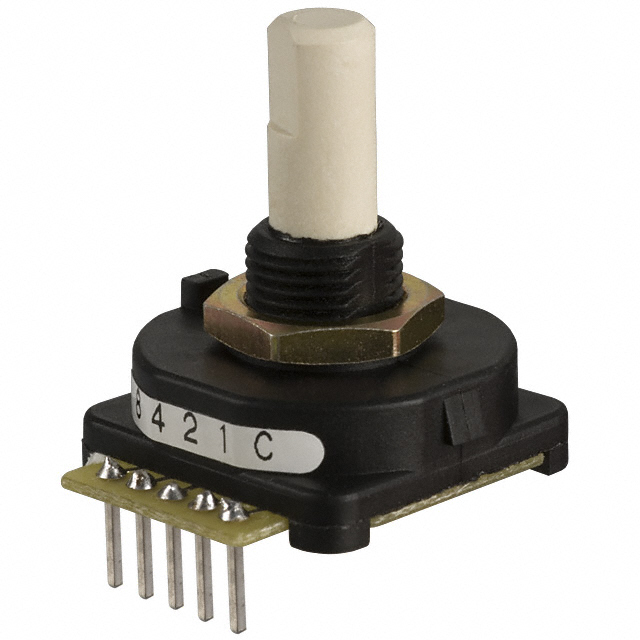

ActiveROTARY ENCODER, MECHANICAL, ABSOLUTE, 16 PPR, 16 DETENTS, VERTICAL, WITHOUT PUSH SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
25LB22-H
ActiveROTARY ENCODER, MECHANICAL, ABSOLUTE, 16 PPR, 16 DETENTS, VERTICAL, WITHOUT PUSH SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 25LB22-H | 25LB22 Series |
|---|---|---|
| Actuator Type | 0.25 | 0.25 |
| Actuator Type | Flatted End | Flatted End |
| Built in Switch | False | False |
| Detent | True | True |
| Encoder Type | Mechanical | Mechanical |
| Mounting Type | PCB Through Hole, Panel | PCB Through Hole, Panel |
| Orientation | Vertical | Vertical |
| Output Type | Hexadecimal (Absolute) | Hexadecimal (Absolute), Quadrature (Incremental), Gray Code (Absolute) |
| Pulses per Revolution | 16 | 16 |
| Rotational Life (Cycles Min) [Min] | 100K | 100K |
| Termination Style | PC Pin | PC Pin |
25LB22 Series
ROTARY ENCODER MECHANICAL 16PPR
| Part | Orientation | Rotational Life (Cycles Min) [Min] | Termination Style | Detent | Mounting Type | Output Type | Pulses per Revolution | Encoder Type | Actuator Type | Actuator Type | Built in Switch |
|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 25LB22-H-Z | Vertical | 100K | PC Pin | Panel, PCB Through Hole | Hexadecimal (Absolute) | 16 | Mechanical | 0.25 | Flatted End | ||
Grayhill Inc. 25LB22-Q-Z | Vertical | 100K | PC Pin | Panel, PCB Through Hole | Quadrature (Incremental) | 16 | Mechanical | 0.25 | Flatted End | ||
Grayhill Inc. 25LB22-H | Vertical | 100K | PC Pin | Panel, PCB Through Hole | Hexadecimal (Absolute) | 16 | Mechanical | 0.25 | Flatted End | ||
Grayhill Inc. 25LB22-G-Z | Vertical | 100K | PC Pin | Panel, PCB Through Hole | Gray Code (Absolute) | 16 | Mechanical | 0.25 | Flatted End |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
25LB22 Series
The 25LB22-H is an economical Single Deck Encoder with 100% tin over nickel-plated copper alloy terminals, gold-plated beryllium copper contacts and black reinforced thermoplastic housing. The encoder also comes with nickel-plated stainless steel detent ball, tinned music wire detent spring and tin-plated stainless steel mounting bracket.
