261-307/341-000
ActiveWAGO Corporation
2-CONDUCTOR TERMINAL BLOCK; ON B
261-307/341-000
ActiveWAGO Corporation
2-CONDUCTOR TERMINAL BLOCK; ON B
Description
General part information
261-307/341-000

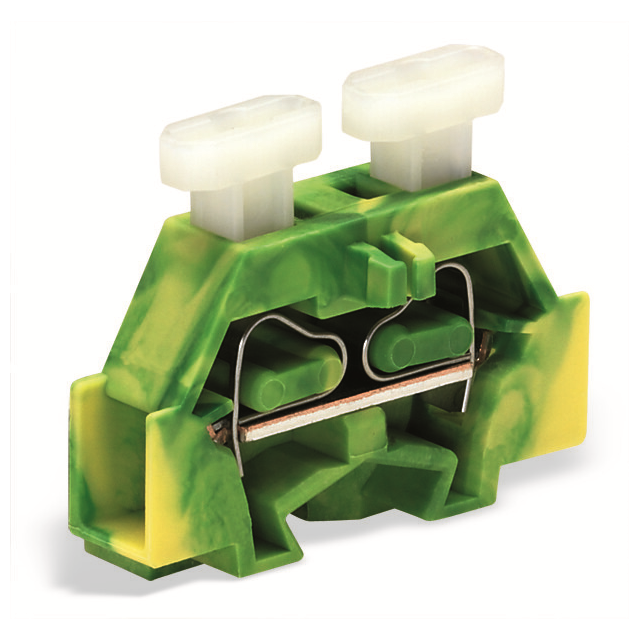

2 Position Terminal Block Green, Yellow Middle 6.0mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 261-307/341-000 |
|---|---|
| Features | Push Button Actuated |
| Height (Max) | 0.917 in |
| Housing Color | Green, Yellow |
| Length | 1.106 in |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Direct Mount |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length (Max) | 9 mm |
| Stripping Length (Min) | 8 mm |
| Terminal Width | 6 mm |
| Termination Style | Push In, Spring |
| Type | Middle |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 14 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
