214921 Series

Part	Number of Conductors	Number of Rows	Contact End	Contact End Shape	Contact Finish	Contact Finish Thickness	Length	Color	Wire Gauge
Molex 2149211215	1	1	Socket to Cable	Round	Tin	35.4 µin	17.7 in	Black	26 AWG

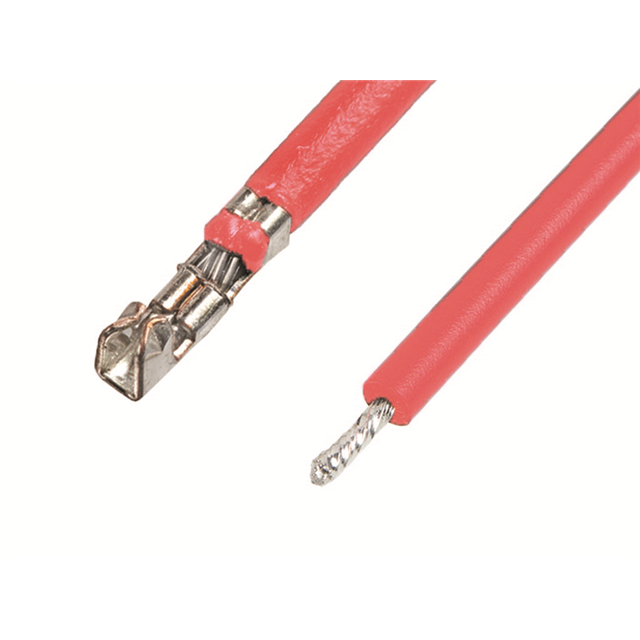

Molex 2149211223	1	1	Socket to Cable	Round	Tin	35.4 µin	8.86 in	Red	26 AWG
Molex 2149211225	1	1	Socket to Cable	Round	Tin	35.4 µin	17.7 in	Red	26 AWG
Molex 2149211125	1	1	Socket to Socket		Tin	35.4 µin	17.7 in	Red	28 AWG

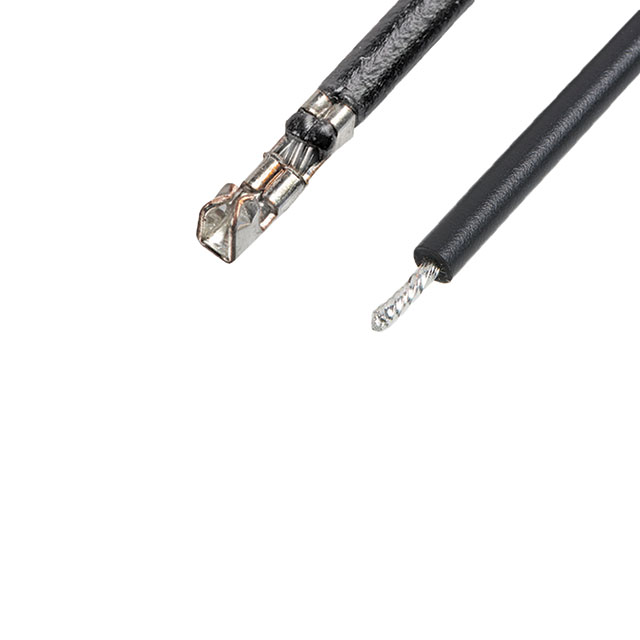

Molex 2149211111	1	1	Socket to Cable	Round	Tin	35.4 µin	2.95 in	Black	28 AWG
Molex 2149212221	1	1	Socket to Cable	Round	Gold	15 µin	2.95 in	Red	26 AWG
Molex 2149212224	1	1	Socket to Cable	Round	Gold	15 µin	11.8 in	Red	26 AWG
Molex 2149212214	1	1	Socket to Cable	Round	Gold	15 µin	11.8 in	Black	26 AWG
Molex 2149212211	1	1	Socket to Cable	Round	Gold	15 µin	2.95 in	Black	26 AWG
Molex 2149212223	1	1	Socket to Cable	Round	Gold	15 µin	8.86 in	Red	26 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
