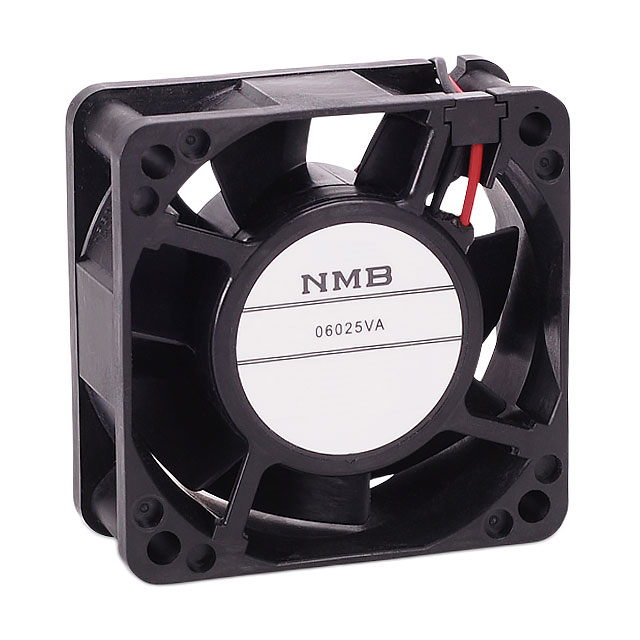

06025VA-24Q-CA-00 - 06025VA

06025VA-24Q-CA-00

Active
NMB TECHNOLOGIES

DC AXIAL FAN, 24 V, SQUARE, 60 MM, 25 MM, BALL BEARING, 39.2 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFan Part Numbering GuideDatasheet+2
06025VA-24Q-CA-00 - 06025VA

06025VA-24Q-CA-00

Active
NMB TECHNOLOGIES

DC AXIAL FAN, 24 V, SQUARE, 60 MM, 25 MM, BALL BEARING, 39.2 CFM

Deep-Dive with AI

DocumentsFan Part Numbering GuideDatasheet+2

Technical Specifications

Parameters and characteristics for this part

Specification06025VA-24Q-CA-00
Air Flow39.2 CFM
Air Flow1.1 m³/min
Bearing TypeBall
Current Rating (Amps)270 mA
Fan TypeTubeaxial
Ingress ProtectionIP69K - Dust Tight, High Temp Water Jets, Waterproof
Material - BladePlastic
Material - FramePlastic
Noise54 dB
Operating Temperature [Max]70 °C
Operating Temperature [Max]70 °C
Operating Temperature [Min]-10 °C
Operating Temperature [Min]-10 °C
Power (Watts)6.5 W
RPM9200 RPM
Size / Dimension [x]60 mm
Size / Dimension [y]60 mm
Static Pressure244 Pa
Static Pressure0.98 in H2O
Termination2 Wire Leads
Voltage - Rated24 VDC
Voltage Range [Max]27.6 VDC
Voltage Range [Min]10 VDC
Weight0.198 lb
Weight89.81 g
Width [y]25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 14.95
10$ 13.33
25$ 12.73
50$ 12.30
100$ 11.88
105$ 10.62
250$ 11.35
500$ 10.96
NewarkEach 1$ 19.16
5$ 18.15
10$ 17.15
25$ 16.41
50$ 15.88

Description

General part information

06025VA-24Q-CA-00

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 39.2 CFM (1.10m³/min) 2 Wire Leads
