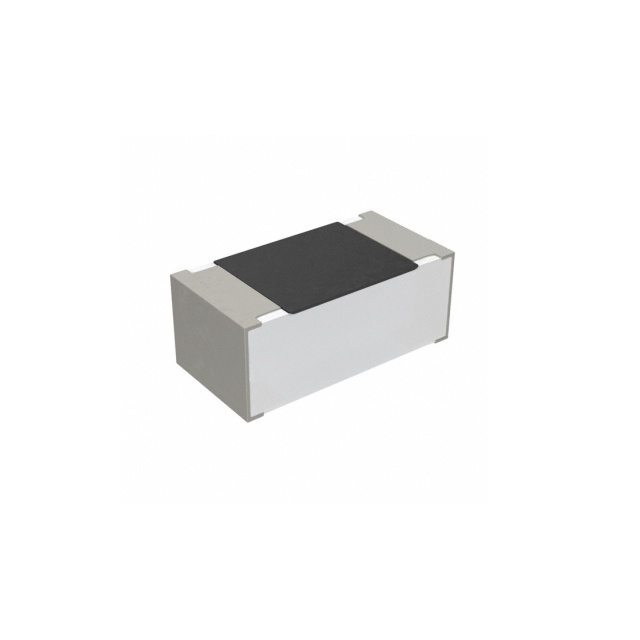

RC0201FR-0712K7P
ActiveYAGEO
RES 12.7K OHM 1% 1/20W 0201
Deep-Dive with AI
Search across all available documentation for this part.
RC0201FR-0712K7P
ActiveYAGEO
RES 12.7K OHM 1% 1/20W 0201
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RC0201FR-0712K7P | RC0201 Series |
|---|---|---|
| Composition | Thick Film | Thick Film |
| Height - Seated (Max) [Max] [z] | 0.26 mm | 0.26 mm |
| Height - Seated (Max) [Max] [z] | 0.01 " | 0.01 " |
| Number of Terminations | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | 0603 Metric | 0603 Metric |
| Package / Case | 0201 | 0201 |
| Power (Watts) | 0.05 W | 0.05 W |
| Power (Watts) | 50 mW | 50 mW |
| Ratings | 7C1, 100% Pb-Free, RoHS w/out Exemption | 7C1, 100% Pb-Free, RoHS w/out Exemption |
| Resistance | 12.7 kOhms | 1 - 200000 kOhms |
| Size / Dimension [x] | 0.6 mm | 0.6 mm |
| Size / Dimension [x] | 0.024 " | 0.024 " |
| Size / Dimension [y] | 0.3 mm | 0.3 mm |
| Size / Dimension [y] | 0.012 " | 0.012 " |
| Supplier Device Package | 0201 | 0201 |
| Temperature Coefficient | 200 ppm/°C | 200 ppm/°C |
| Temperature Coefficient | - | -100 ppm/°C |
| Temperature Coefficient | - | 350 ppm/°C |
| Tolerance | 1 % | 1 - 5 % |
RC0201 Series
RES 100K OHM 5% 1/20W 0201
...
| Part | Ratings | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Number of Terminations | Package / Case | Package / Case | Supplier Device Package | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [Min] | Operating Temperature [Max] | Temperature Coefficient | Power (Watts) | Power (Watts) | Resistance | Composition | Temperature Coefficient [Min] | Temperature Coefficient [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
YAGEO RC0201JR-07100KP | 100% Pb-Free, 7C1, RoHS w/out Exemption | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 5 % | 2 | 0603 Metric | 0201 | 0201 | 0.26 mm | 0.01 " | -55 °C | 125 °C | 200 ppm/°C | 0.05 W | 50 mW | 100 kOhms | Thick Film | ||
YAGEO RC0201FR-0730K9P | 100% Pb-Free, 7C1, RoHS w/out Exemption | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 1 % | 2 | 0603 Metric | 0201 | 0201 | 0.26 mm | 0.01 " | -55 °C | 125 °C | 200 ppm/°C | 0.05 W | 50 mW | 30.9 kOhms | Thick Film | ||
YAGEO RC0201FR-0757K6P | 100% Pb-Free, 7C1, RoHS w/out Exemption | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 1 % | 2 | 0603 Metric | 0201 | 0201 | 0.26 mm | 0.01 " | -55 °C | 125 °C | 200 ppm/°C | 0.05 W | 50 mW | 57.6 kOhms | Thick Film | ||
YAGEO RC0201FR-073K32P | 100% Pb-Free, 7C1, RoHS w/out Exemption | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 1 % | 2 | 0603 Metric | 0201 | 0201 | 0.26 mm | 0.01 " | -55 °C | 125 °C | 200 ppm/°C | 0.05 W | 50 mW | 3.32 kOhms | Thick Film | ||
YAGEO RC0201FR-0731R6P | 100% Pb-Free, 7C1, RoHS w/out Exemption | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 1 % | 2 | 0603 Metric | 0201 | 0201 | 0.26 mm | 0.01 " | -55 °C | 125 °C | 200 ppm/°C | 0.05 W | 50 mW | Thick Film | |||
YAGEO RC0201FR-076M19P | 100% Pb-Free, 7C1, RoHS w/out Exemption | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 1 % | 2 | 0603 Metric | 0201 | 0201 | 0.26 mm | 0.01 " | -55 °C | 125 °C | 200 ppm/°C | 0.05 W | 50 mW | 6.19 MOhms | Thick Film | ||
YAGEO RC0201FR-0710K7P | 100% Pb-Free, 7C1, RoHS w/out Exemption | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 1 % | 2 | 0603 Metric | 0201 | 0201 | 0.26 mm | 0.01 " | -55 °C | 125 °C | 200 ppm/°C | 0.05 W | 50 mW | 10.7 kOhms | Thick Film | ||
YAGEO RC0201JR-07160RP | 100% Pb-Free, 7C1, RoHS w/out Exemption | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 5 % | 2 | 0603 Metric | 0201 | 0201 | 0.26 mm | 0.01 " | -55 °C | 125 °C | 200 ppm/°C | 0.05 W | 50 mW | 160 Ohms | Thick Film | ||
YAGEO RC0201FR-0747K5P | 100% Pb-Free, 7C1, RoHS w/out Exemption | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 1 % | 2 | 0603 Metric | 0201 | 0201 | 0.26 mm | 0.01 " | -55 °C | 125 °C | 200 ppm/°C | 0.05 W | 50 mW | 47.5 kOhms | Thick Film | ||
YAGEO RC0201FR-0769K8P | 100% Pb-Free, 7C1, RoHS w/out Exemption | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 1 % | 2 | 0603 Metric | 0201 | 0201 | 0.26 mm | 0.01 " | -55 °C | 125 °C | 200 ppm/°C | 0.05 W | 50 mW | 69.8 kOhms | Thick Film |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.14 | |
| 10 | $ 0.07 | |||
| 50 | $ 0.04 | |||
| 100 | $ 0.04 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.02 | |||
| 5000 | $ 0.02 | |||
| Digi-Reel® | 1 | $ 0.14 | ||
| 10 | $ 0.07 | |||
| 50 | $ 0.04 | |||
| 100 | $ 0.04 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.02 | |||
| 5000 | $ 0.02 | |||
| Tape & Reel (TR) | 10000 | $ 0.01 | ||
Description
General part information
RC0201 Series
12.7 kOhms ±1% 0.05W, 1/20W Chip Resistor 0201 (0603 Metric) Thick Film
