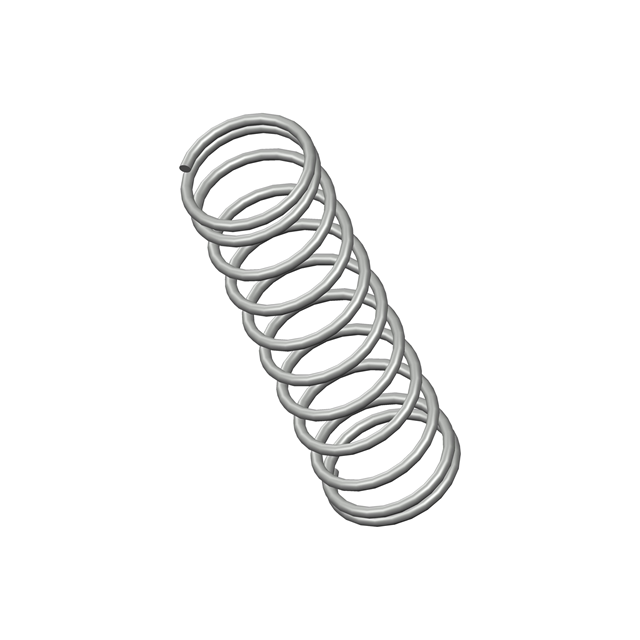

1665CS
ActiveCentury Spring Corp
COMP O= .906,L= 3.13,W= .075
1665CS
ActiveCentury Spring Corp
COMP O= .906,L= 3.13,W= .075
Description
General part information
1665CS
COMP O= .906,L= 3.13,W= .075
Technical Specifications
Parameters and characteristics for this part
| Specification | 1665CS |
|---|---|
| Diameter - Inside | 0.756 in |
| Diameter - Outside | 0.906 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 3.13 in |
| Material | Music Wire |
| Rate (lbs/in) | 8.8 lbs/in |
| Type | Compression |
| Wire Diameter | 0.075 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
