8469 060100

Active

Belden Inc.

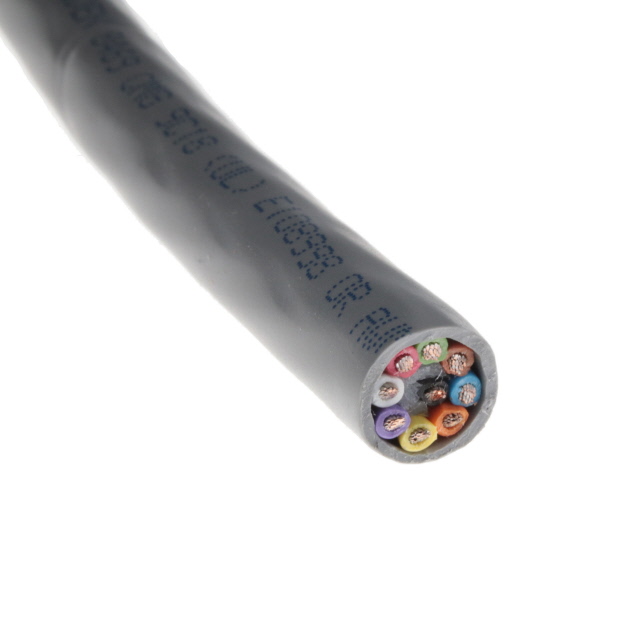

CABLE 9COND 18AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 9COND 18AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8469 060100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	9
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation, Control
Wire Gauge	18 AWG

Part	Length	Length	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Cable Type	Usage	Voltage	Jacket (Insulation) Material	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Length [x]	Length [x]
Belden Inc. 8469 060250	3000 "	76.2 m	Chrome	-20 C	60 °C	9	18 AWG	19	30 AWG	Copper Tinned	Multi-Conductor	Audio Control Instrumentation	300 V	Poly-Vinyl Chloride (PVC)	UL Style 2598	0.94 mm	0.037 in	Poly-Vinyl Chloride (PVC)
Belden Inc. 8469 060100			Chrome	-20 C	60 °C	9	18 AWG	19	30 AWG	Copper Tinned	Multi-Conductor	Audio Control Instrumentation		Poly-Vinyl Chloride (PVC)		0.94 mm	0.037 in	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft
Belden Inc. 8469 0601000	1000 ft	304.8 m	Chrome	-20 C	60 °C	9	18 AWG	19	30 AWG	Copper Tinned	Multi-Conductor	Audio Control Instrumentation	300 V	Poly-Vinyl Chloride (PVC)	UL Style 2598	0.94 mm	0.037 in	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Conductor Multi-Conductor Cable Chrome 18 AWG 100.0' (30.5m)
