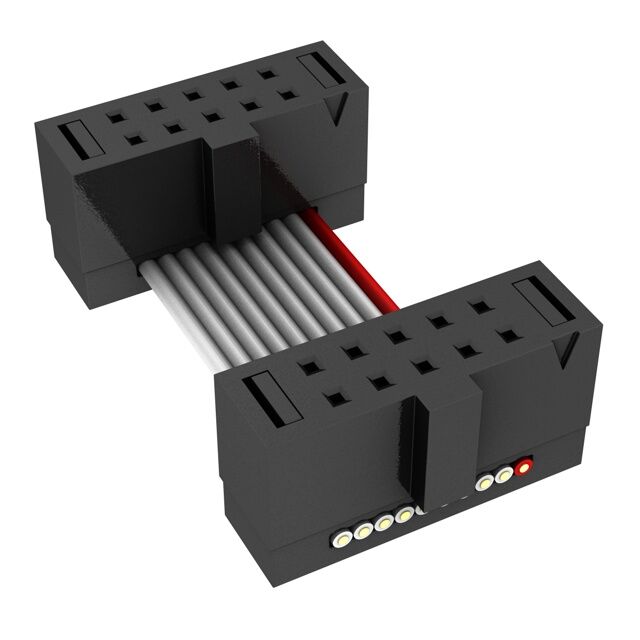

FFSD-05-D-04.75-01-N

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFSD-05-D-04.75-01-N

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-05-D-04.75-01-N

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key
Length [x]	4.75 "
Length [x]	0.396 '
Length [x]	120.65 mm
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-05 Series

...

Part	Features	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Shielding	Pitch - Cable [x]	Pitch - Cable	Number of Positions	Number of Rows	Length [x]	Length [x]	Length [x]	Contact Finish	Connector Type	Cable Termination	Length	Length	Length	Length
Samtec Inc. FFSD-05-D-04.75-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2	4.75 "	0.396 '	120.65 mm	Gold	Socket to Socket	IDC
Samtec Inc. FFSD-05-S-07.80-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2				Gold	Socket to Cable	IDC	0.65 '	7.8 "	198.12 mm
Samtec Inc. FFSD-05-D-15.70-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2		1.31 ft	398.78 mm	Gold	Socket to Socket	IDC
Samtec Inc. FFSD-05-D-11.05-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2	11.05 "	0.921 '	280.67 mm	Gold	Socket to Socket	IDC
Samtec Inc. FFSD-05-D-66.00-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2				Gold	Socket to Socket	IDC			1.68 m	5.5 ft
Samtec Inc. FFSD-05-D-06.25-01-N-R	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2	6.25 in	0.521 ft	158.75 mm	Gold	Socket to Socket Reversed	IDC
Samtec Inc. FFSD-05-D-04.25-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2	4.25 "	0.354 ft	107.95 mm	Gold	Socket to Socket	IDC
Samtec Inc. FFSD-05-D-10.00-01-N-RW-R	Polarizing Key Reverse Wiring	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2				Gold	Socket to Socket Reversed	IDC		10 in	254 mm	0.833 ft
Samtec Inc. FFSD-05-D-03.00-01-N-RW-R	Polarizing Key Reverse Wiring	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2				Gold	Socket to Socket Reversed	IDC		3 "	76.2 mm	0.25 ft
Samtec Inc. FFSD-05-S-02.40-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2				Gold	Socket to Cable	IDC		2.4 "	60.96 mm	0.2 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.67

Description

General part information

FFSD-05 Series

10 Position Cable Assembly Rectangular Socket to Socket 0.396' (120.65mm, 4.75")

Documents

Technical documentation and resources
