F1A2-303010-5R6N
ActiveSignal Transformer
FIXED IND 5.6UH 750MA 295 MOHM
F1A2-303010-5R6N
ActiveSignal Transformer
FIXED IND 5.6UH 750MA 295 MOHM
Description
General part information
F1A2-303010-5R6N

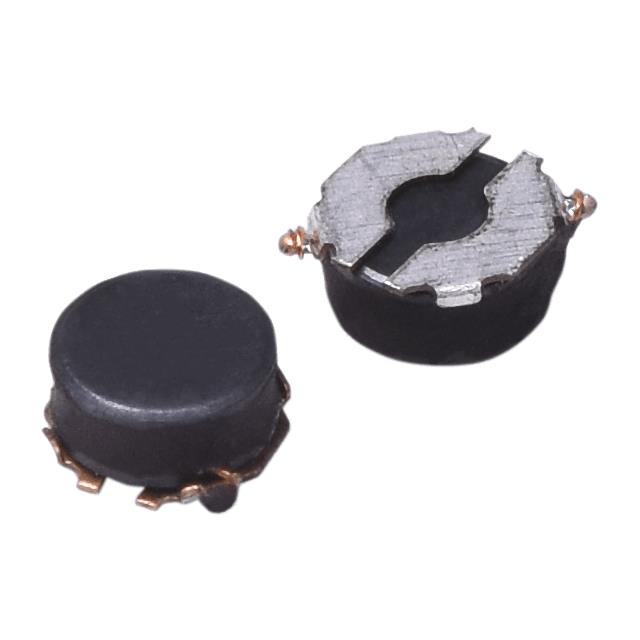

5.6 µH Shielded Wirewound Inductor 750 mA 295mOhm Max 1212 (3030 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | F1A2-303010-5R6N |
|---|---|
| Current - Saturation (Isat) | 0.68 mA |
| Current Rating | 0.75 A |
| DC Resistance (DCR) (Max) | 295 mOhm |
| Height - Seated (Max) | 0.039 in |
| Inductance | 5.6 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1212 (3030 Metric) |
| Package Name | 1212 |
| Shielding | Shielded |
| Size / Dimension Length | 0.118 in |
| Size / Dimension Width | 0.118 in |
| Tolerance | 30 % |
| Type | Wirewound |
