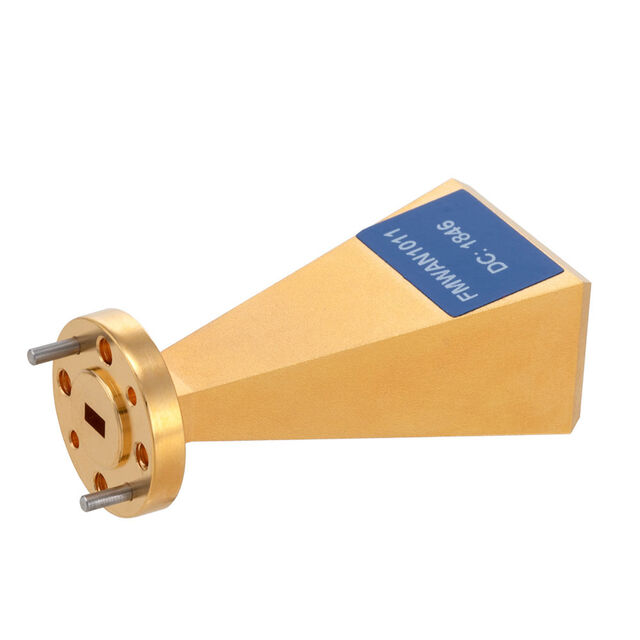

FMWAN1011
ActiveFairview Microwave
WG ANTENNA WR-15 50-75 GHZ
FMWAN1011
ActiveFairview Microwave
WG ANTENNA WR-15 50-75 GHZ
Description
General part information
FMWAN1011
RF ANTENNA General Purpose Horn Screw-Mount Waveguide Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FMWAN1011 |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Frequency (Center/Band) | 62.5 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 75 GHz |
| Frequency Range (Min) | 50 GHz |
| Gain | 20 dBi |
| Height (Max) | 0.88 in |
| Mounting Type | Waveguide Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination | Screw-Mount |
| VSWR | 1.15 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
