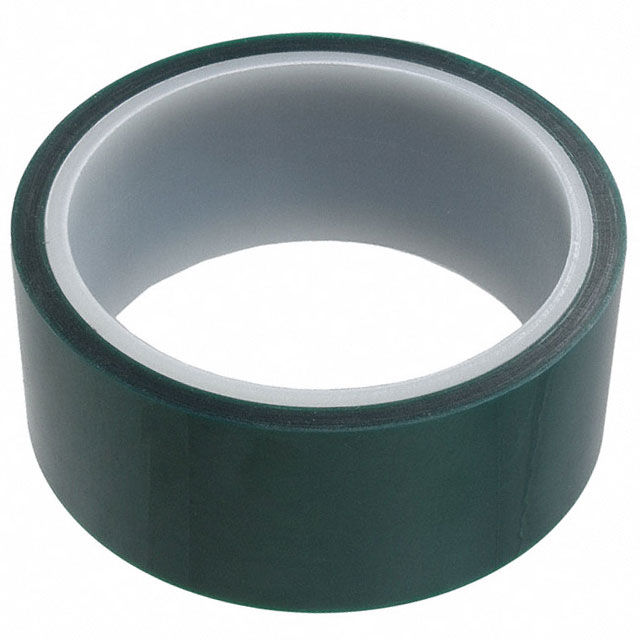

Specification	8992-1.5-72

Adhesive	Silicone Thermosetting
Backing	Polyester Film
Carrier	Polyester Film
Color	Green
Length (ft)	216 ft
Length (yd)	72 yd
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature (Maximum)	80 °F
Storage/Refrigeration Temperature (Minimum)	60 °F
Tape Type	Insulating, High Temperature
Temperature Range (Single)	400 °F
Thickness	0.0033 in
Thickness - Adhesive	0.0013 in
Thickness - Backing, Carrier	0.002 in
Usage	General Purpose
Width	1.5 in

8992 Series

...

Part	Shelf Life Start	Storage/Refrigeration Temperature (Maximum)	Storage/Refrigeration Temperature (Minimum)	Shelf Life	Thickness	Length	Thickness - Adhesive	Thickness - Backing, Carrier	Color	Adhesive	Tape Type	Width	Backing	Carrier	Temperature Range (Min)	Temperature Range (Max)	Length (yd)	Length (ft)	Temperature Range (Single)	Usage
3M (TC) 8992-1.5" X 4"-250	Date of Manufacture	80 °F	60 °F	24 Months	0.0032 in	4 in	0.0012 in	0.002 in	Green	Silicone Thermosetting	High Temperature Insulating	1.5 in	Polyester Film	Polyester Film	-60 °F	400 °F
3M (TC) 3M 8992 0.188" X 72YD	Date of Manufacture	80 °F	60 °F	24 Months	0.0032 in		0.0012 in	0.002 in	Green	Silicone Thermosetting	High Temperature Insulating	0.19 in	Polyester Film	Polyester Film	-60 °F	400 °F	72 yd	216 ft
3M (TC) 8992-2" X 2"-500	Date of Manufacture	80 °F	60 °F	24 Months	0.0032 in	2 in	0.0012 in	0.002 in	Green	Silicone Thermosetting	High Temperature Insulating	2 in	Polyester Film	Polyester Film	-60 °F	400 °F
3M (TC) 8992-1" X 10"-250	Date of Manufacture	80 °F	60 °F	24 Months	0.0032 in	10 in	0.0012 in	0.002 in	Green	Silicone Thermosetting	High Temperature Insulating	1 in	Polyester Film	Polyester Film	-60 °F	400 °F
3M (TC) 3M 8992 0.94" X 72YD	Date of Manufacture	80 °F	60 °F	24 Months	0.0032 in		0.0012 in	0.002 in	Green	Silicone Thermosetting	High Temperature Insulating	0.94 in	Polyester Film	Polyester Film	-60 °F	400 °F	72 yd	216 ft
3M (TC) 8992-0.5" X 6"-500	Date of Manufacture	80 °F	60 °F	24 Months	0.0032 in	0.5 ft	0.0012 in	0.002 in	Green	Silicone Thermosetting	High Temperature Insulating	12.7 mm	Polyester Film	Polyester Film	-60 °F	400 °F
3M (TC) 8992CIR-1.5(100)	Date of Manufacture	80 °F	60 °F	24 Months	0.0032 in		0.0012 in	0.002 in	Green	Silicone Thermosetting	High Temperature Insulating	1.5 in	Polyester Film	Polyester Film	-60 °F	400 °F
3M (TC) 8992-4-18	Date of Manufacture	80 °F	60 °F	24 Months	0.0033 in		0.0013 in	0.002 in	Green	Silicone Thermosetting	High Temperature Insulating	4 in	Polyester Film	Polyester Film			18 yd	54 ft	400 °F	General Purpose
3M (TC) 8992-3" X 6"-100	Date of Manufacture	80 °F	60 °F	24 Months	0.0032 in	0.5 ft	0.0012 in	0.002 in	Green	Silicone Thermosetting	High Temperature Insulating	3 in	Polyester Film	Polyester Film	-60 °F	400 °F
3M (TC) 3M 8992 0.313" X 72YD	Date of Manufacture	80 °F	60 °F	24 Months	0.0032 in		0.0012 in	0.002 in	Green	Silicone Thermosetting	High Temperature Insulating	0.31 in	Polyester Film	Polyester Film	-60 °F	400 °F	72 yd	216 ft
