ATS-X50290G-C1-R0
ActiveAdvanced Thermal Solutions Inc.

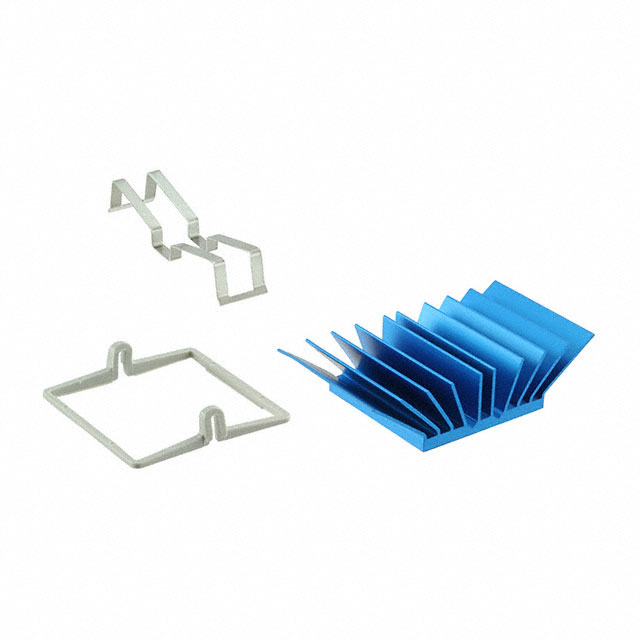

HEAT SINKS MAXIFLOW SUPERGRIP BGA HEAT SINK, T766, BLUE-ANODIZED, 28.25X28.25X12.5MM
ATS-X50290G-C1-R0
ActiveAdvanced Thermal Solutions Inc.
HEAT SINKS MAXIFLOW SUPERGRIP BGA HEAT SINK, T766, BLUE-ANODIZED, 28.25X28.25X12.5MM
Description
General part information
ATS-X Series
Heat Sink BGA Aluminum Top Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS-X50290G-C1-R0 |
|---|---|
| Attachment Method | Clip, Thermal Material |
| Fin Height | 0.492 in |
| Length | 1.142 in |
| Material | Aluminum |
| Material Finish | Blue Anodized |
| Package Cooled | BGA |
| Shape | Square, Angled Fins |
| Thermal Resistance | 4.5 °C/W |
| Type | Top Mount |
| Width | 1.142 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
