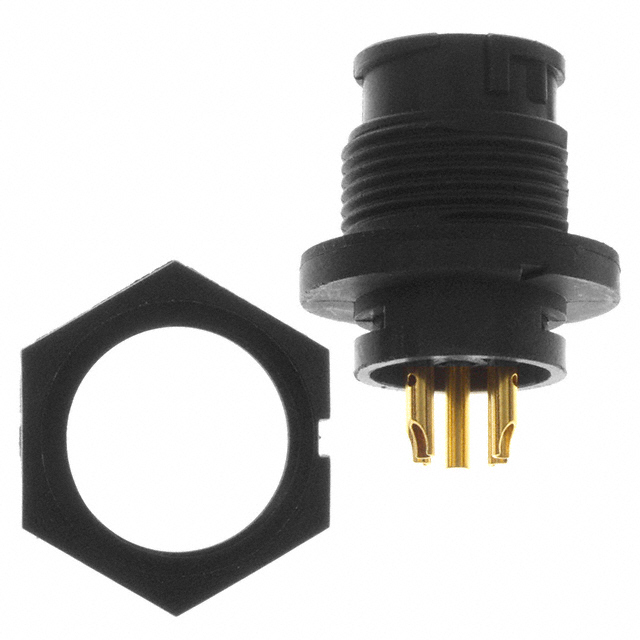

EN3P5MX
ActiveSwitchcraft Inc.
CONN RCPT MALE 5P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3P5MX
ActiveSwitchcraft Inc.
CONN RCPT MALE 5P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P5MX | EN3P5M Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 4 - 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | - | Through Hole, Panel Mount, Right Angle |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | - | Solder, Circuit Board, Solder |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P5M Series
CONN RCPT MALE 5POS GOLD SOLDER
| Part | Fastening Type | Shielding | Mounting Type | Voltage Rating | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Mounting Feature | Contact Finish - Mating | Ingress Protection | Material Flammability Rating | Color | Insert Material | Contact Material | Current Rating (Amps) | Termination | Orientation | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P5MPX | Bayonet Lock | Unshielded | Panel Mount, Through Hole | 250 VAC | Male Pins, Receptacle | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | Gold | IP66/IP68 | UL94 V-0 | Black | Elastomer | Copper Alloy | 7.5 A | Solder | Keyed | Plastic |
Switchcraft Inc. EN3P5MX | Bayonet Lock | Unshielded | 250 VAC | Male Pins, Receptacle | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | Gold | IP66/IP68 | UL94 V-0 | Black | Elastomer | Copper Alloy | 7.5 A | Keyed | Plastic | ||
Switchcraft Inc. EN3P5MRAPCBW | Bayonet Lock | Unshielded | Panel Mount, Right Angle, Through Hole | 250 VAC | Male Pins, Receptacle | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | Gold | IP66/IP68 | UL94 V-0 | Black | Elastomer | Copper Alloy | 4 A | Circuit Board, Solder | Keyed | Plastic |
Switchcraft Inc. EN3P5MRAPC | Bayonet Lock | Unshielded | Panel Mount, Right Angle, Through Hole | 250 VAC | Male Pins, Receptacle | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | Gold | IP66/IP68 | UL94 V-0 | Black | Elastomer | Copper Alloy | 4 A | Solder | Keyed | Plastic |
Switchcraft Inc. EN3P5MRAPCBN | Bayonet Lock | Unshielded | Panel Mount, Right Angle, Through Hole | 250 VAC | Male Pins, Receptacle | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | Gold | IP66/IP68 | UL94 V-0 | Black | Elastomer | Copper Alloy | 4 A | Circuit Board, Solder | Keyed | Plastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.22 | |
| 10 | $ 10.16 | |||
| 25 | $ 9.18 | |||
| 50 | $ 8.52 | |||
| 100 | $ 7.92 | |||
| 300 | $ 7.09 | |||
| 500 | $ 6.74 | |||
| 1000 | $ 6.31 | |||
Description
General part information
EN3P5M Series
5 Position Circular Connector Receptacle, Male Pins Solder Cup
