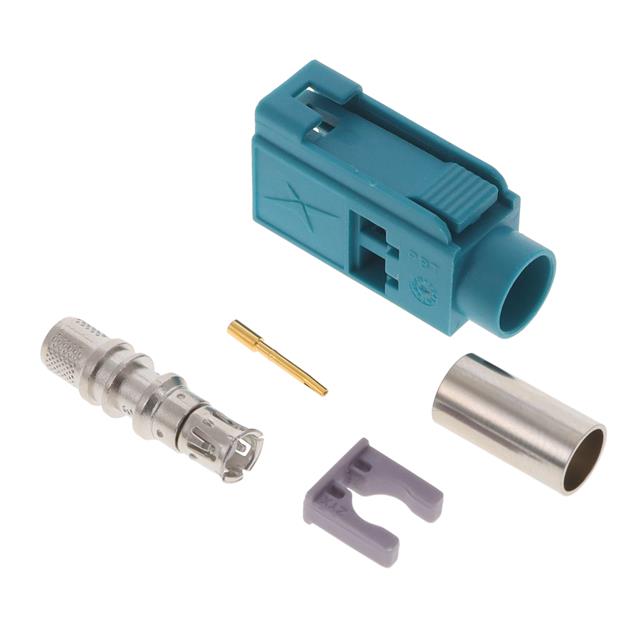

FK1FZG
ActiveTAOGLAS
FAKRA GEN 1 CODE Z WATER BLUE FE
Deep-Dive with AI
Search across all available documentation for this part.
FK1FZG
ActiveTAOGLAS
FAKRA GEN 1 CODE Z WATER BLUE FE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FK1FZG |
|---|---|
| Cable Group | RG-174, 316 |
| Connector Style | SMB, Fakra |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Features | Code Z |
| Frequency - Max [Max] | 6000 MHz |
| Impedance | 50 Ohms |
| Mating Cycles | 25 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.32 | |
| 100 | $ 2.65 | |||
| 500 | $ 2.50 | |||
Description
General part information
FK1FZ Series
SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
Documents
Technical documentation and resources
No documents available
